Overpass Sonce in Rogaška Slatina

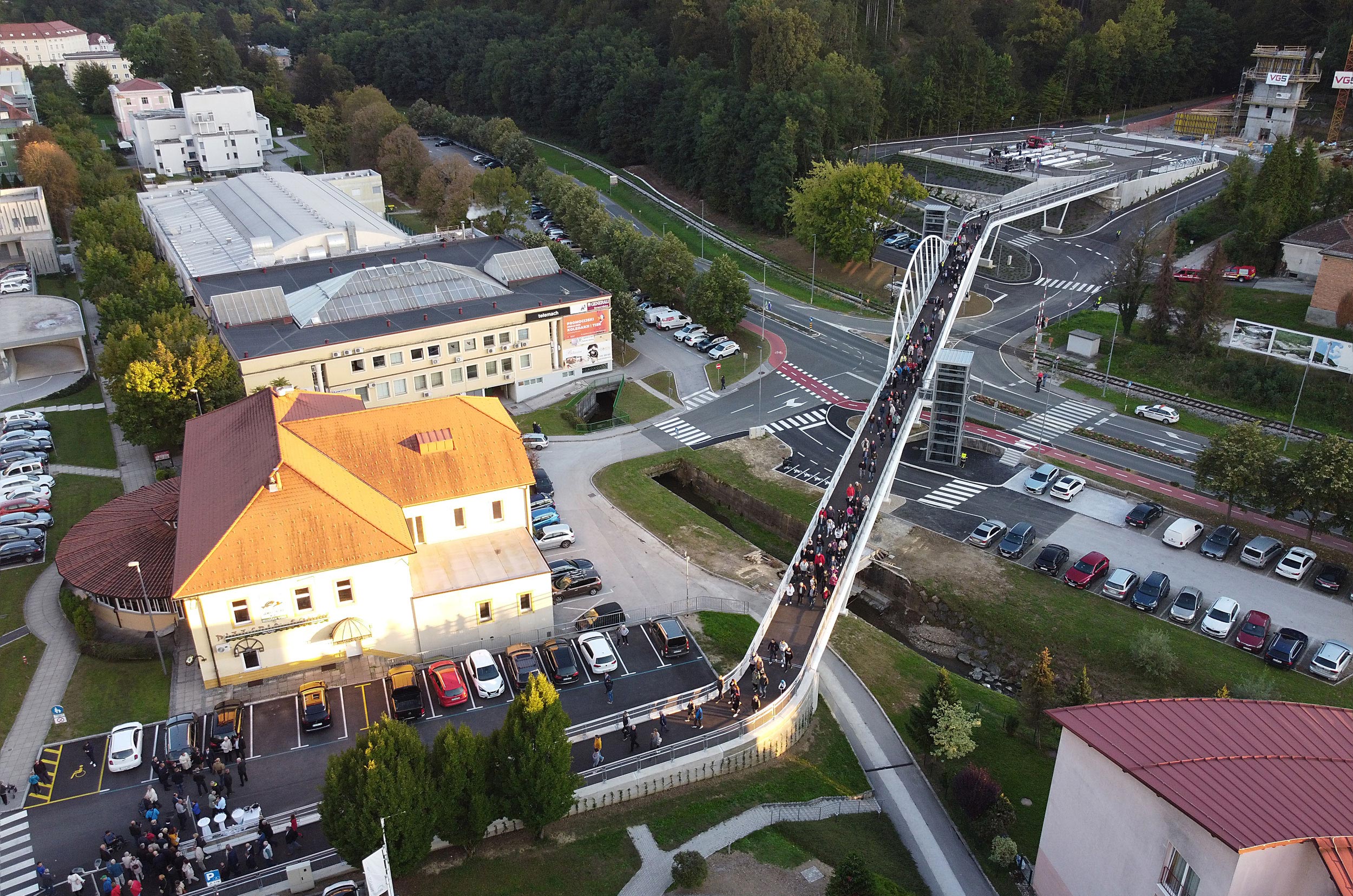

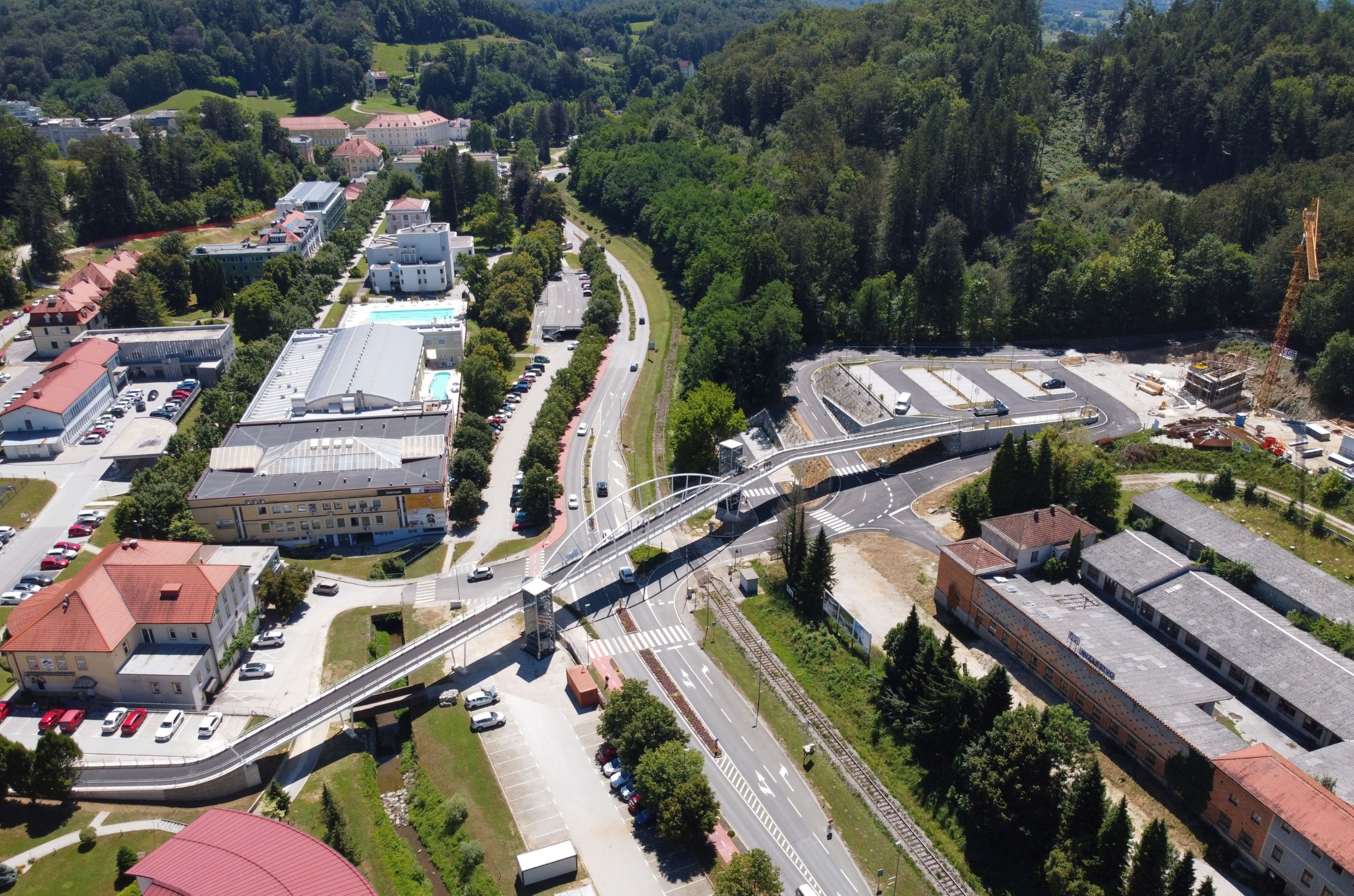

Designed exclusively for pedestrians and cyclists, the overpass Sonce provides a safe connection between the Rogaška Slatina promenade and the foothill of Tržaški hrib. The new overpass is of significant importance for a tourist destination in which the need for outdoor recreational areas and experiences is even greater.

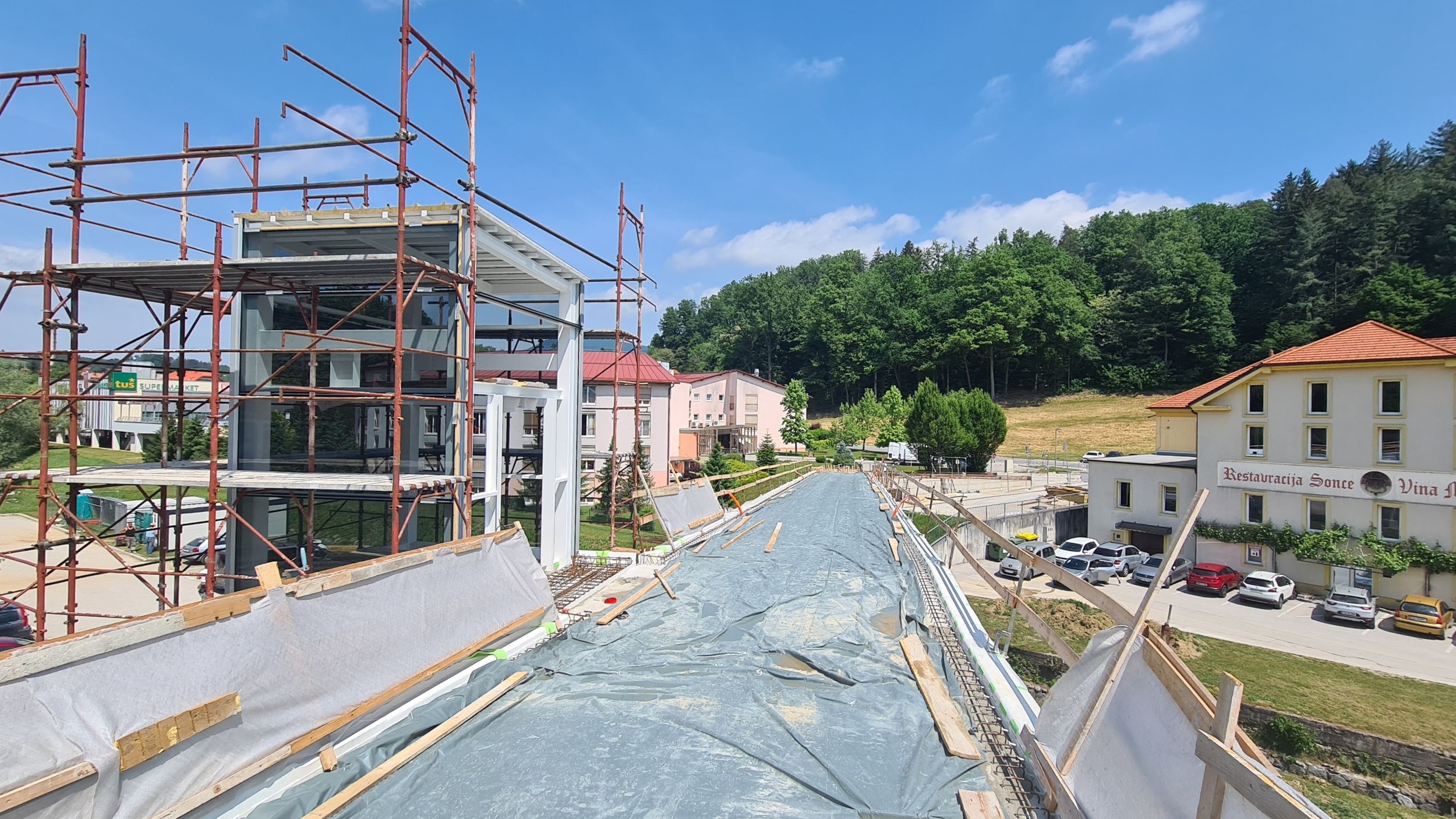

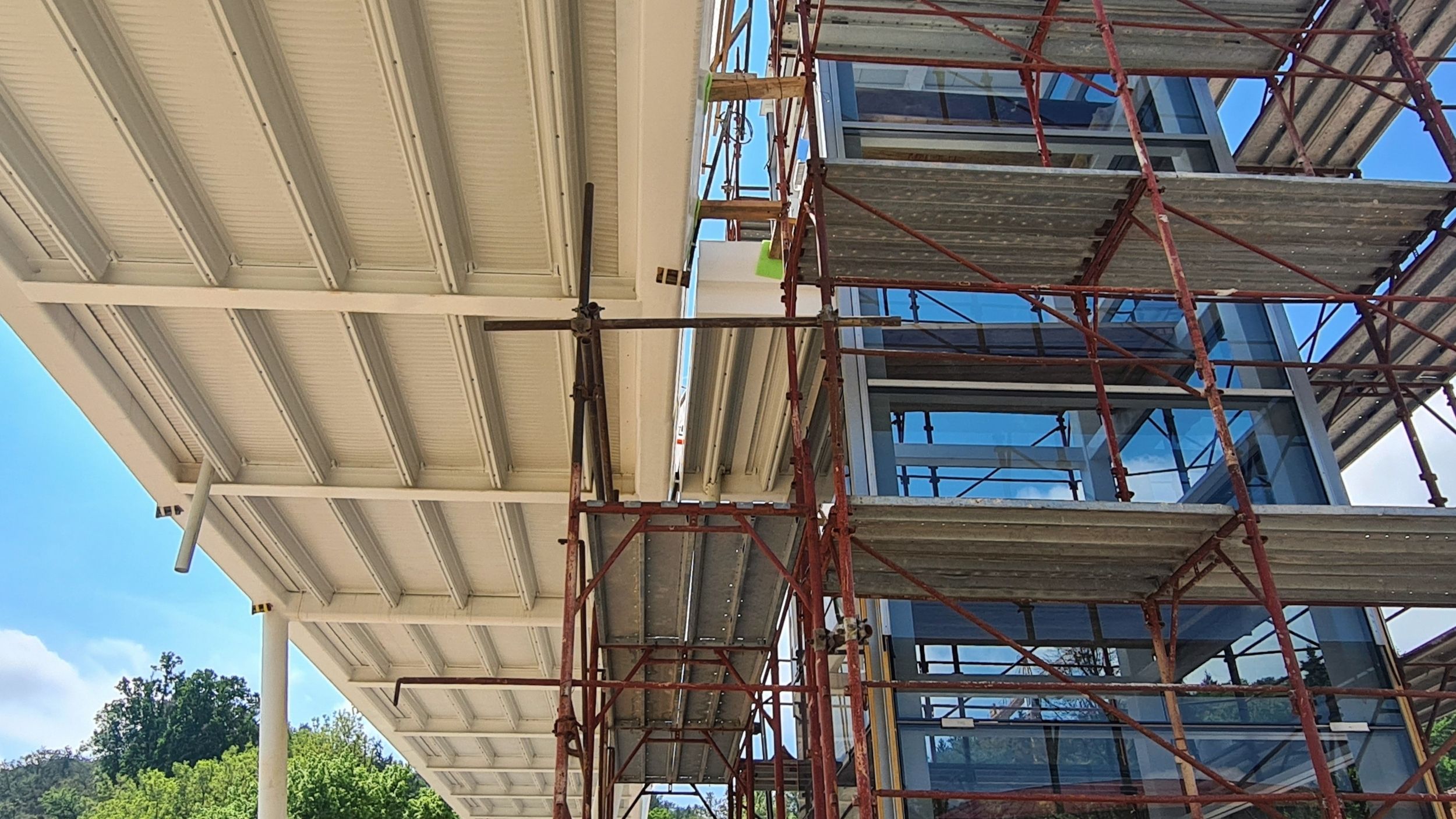

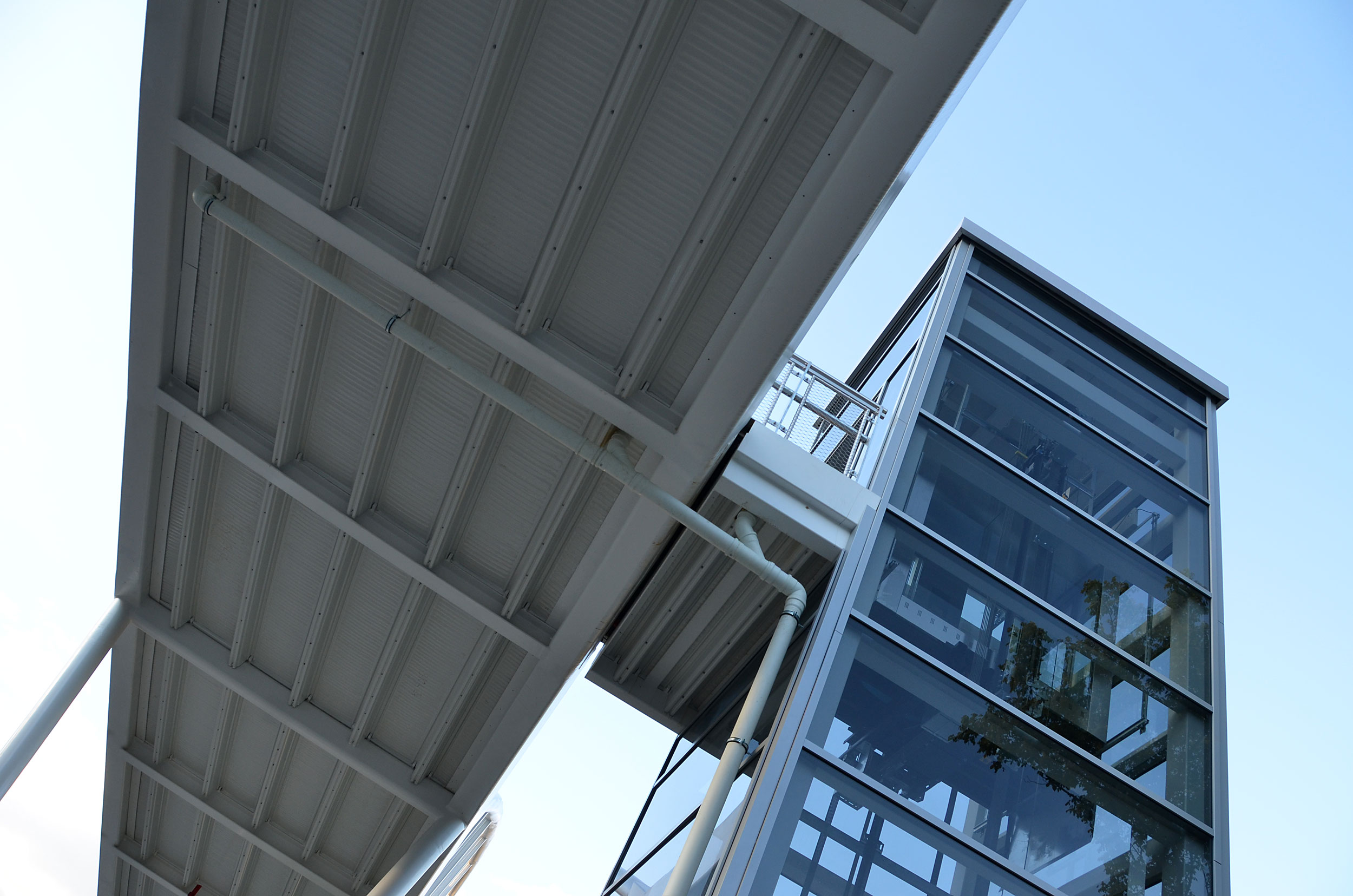

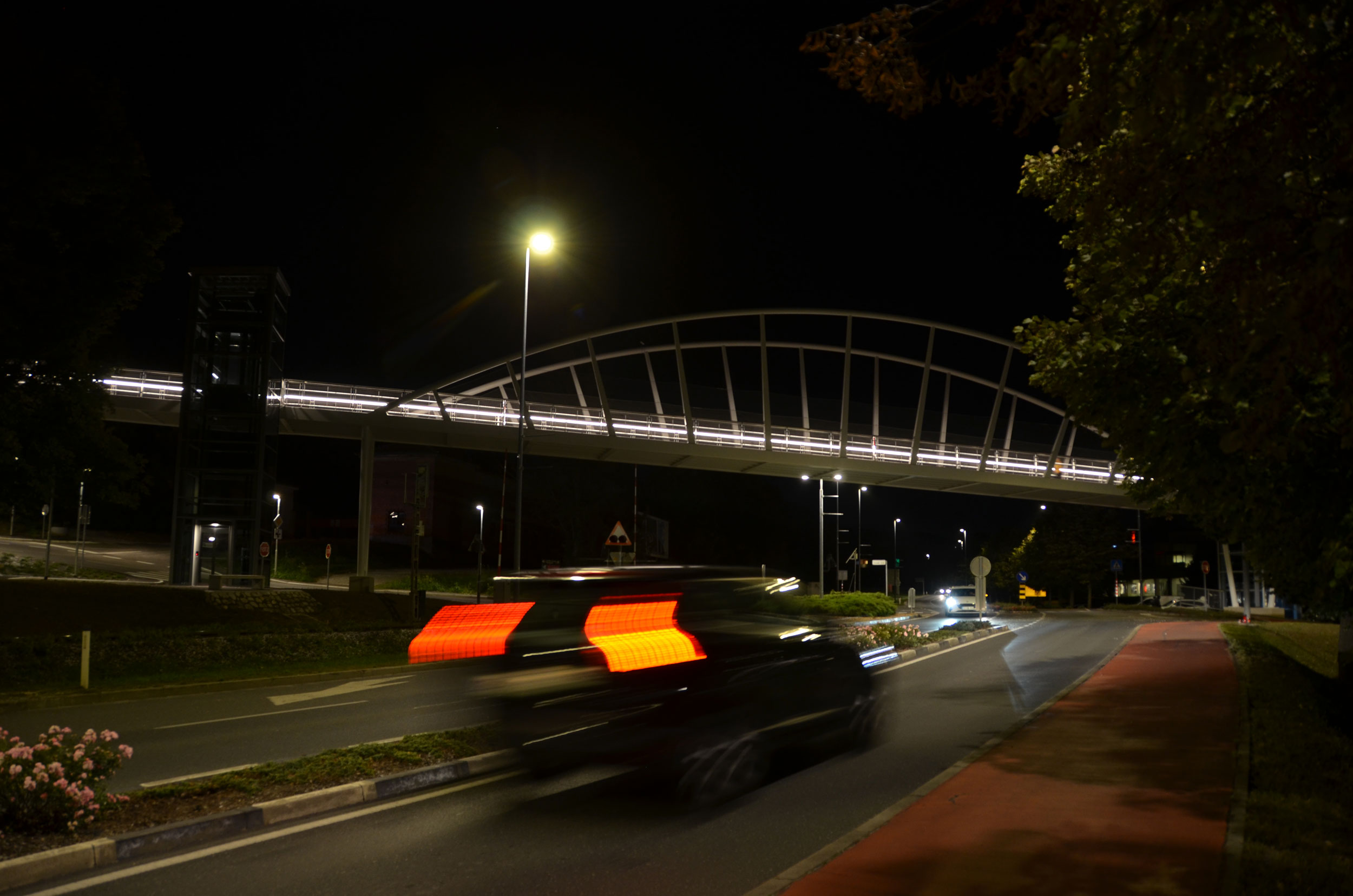

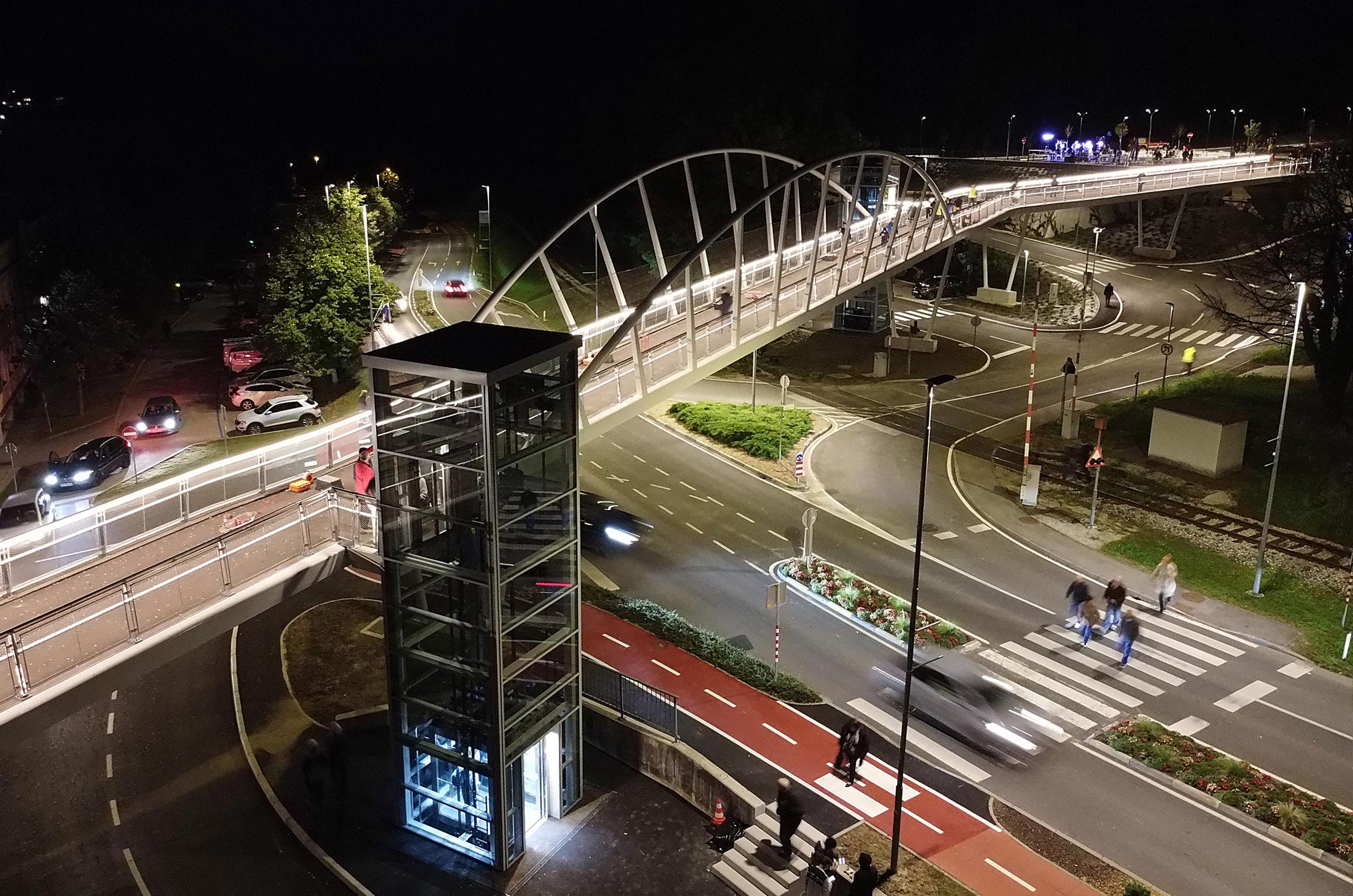

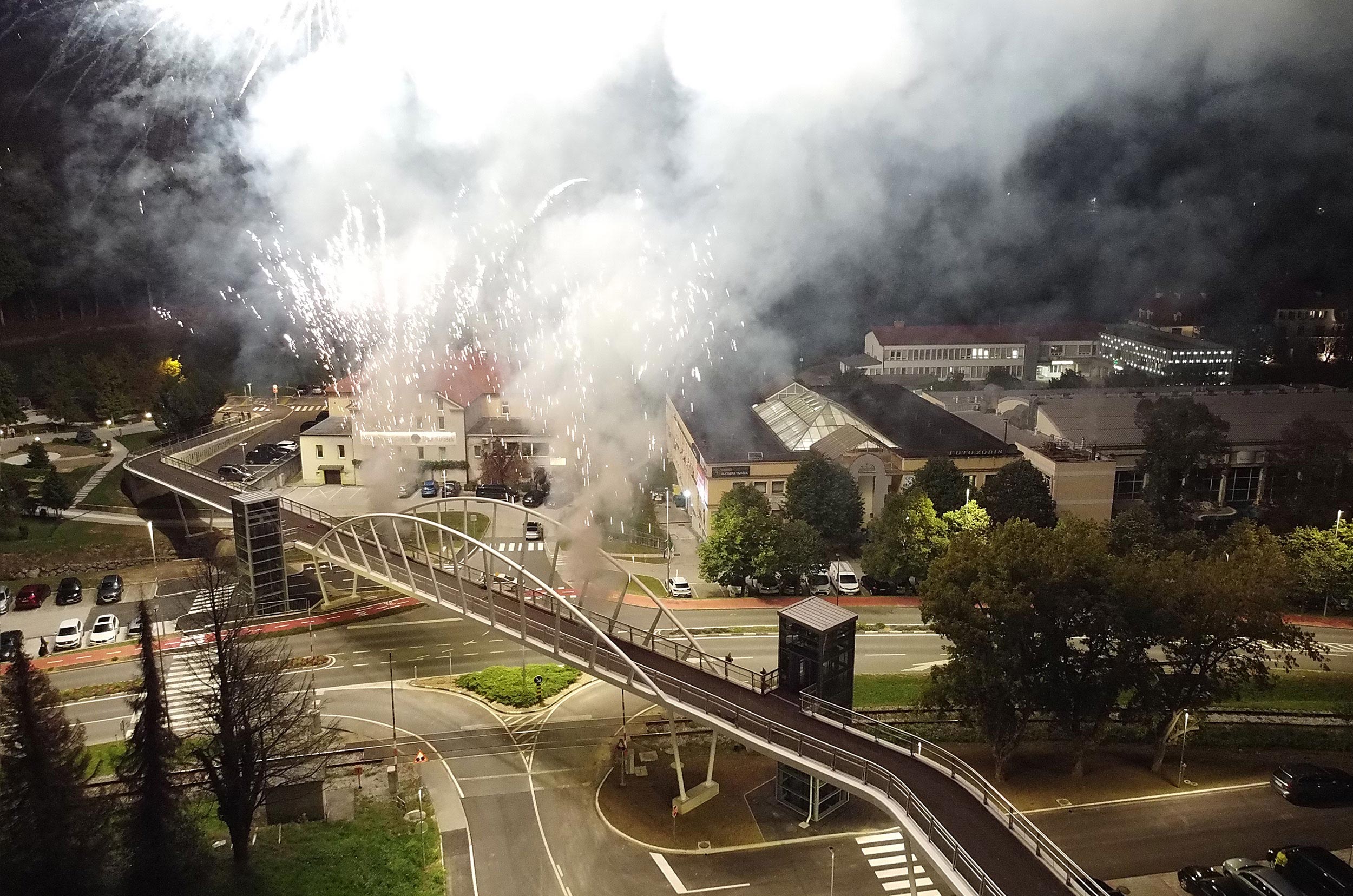

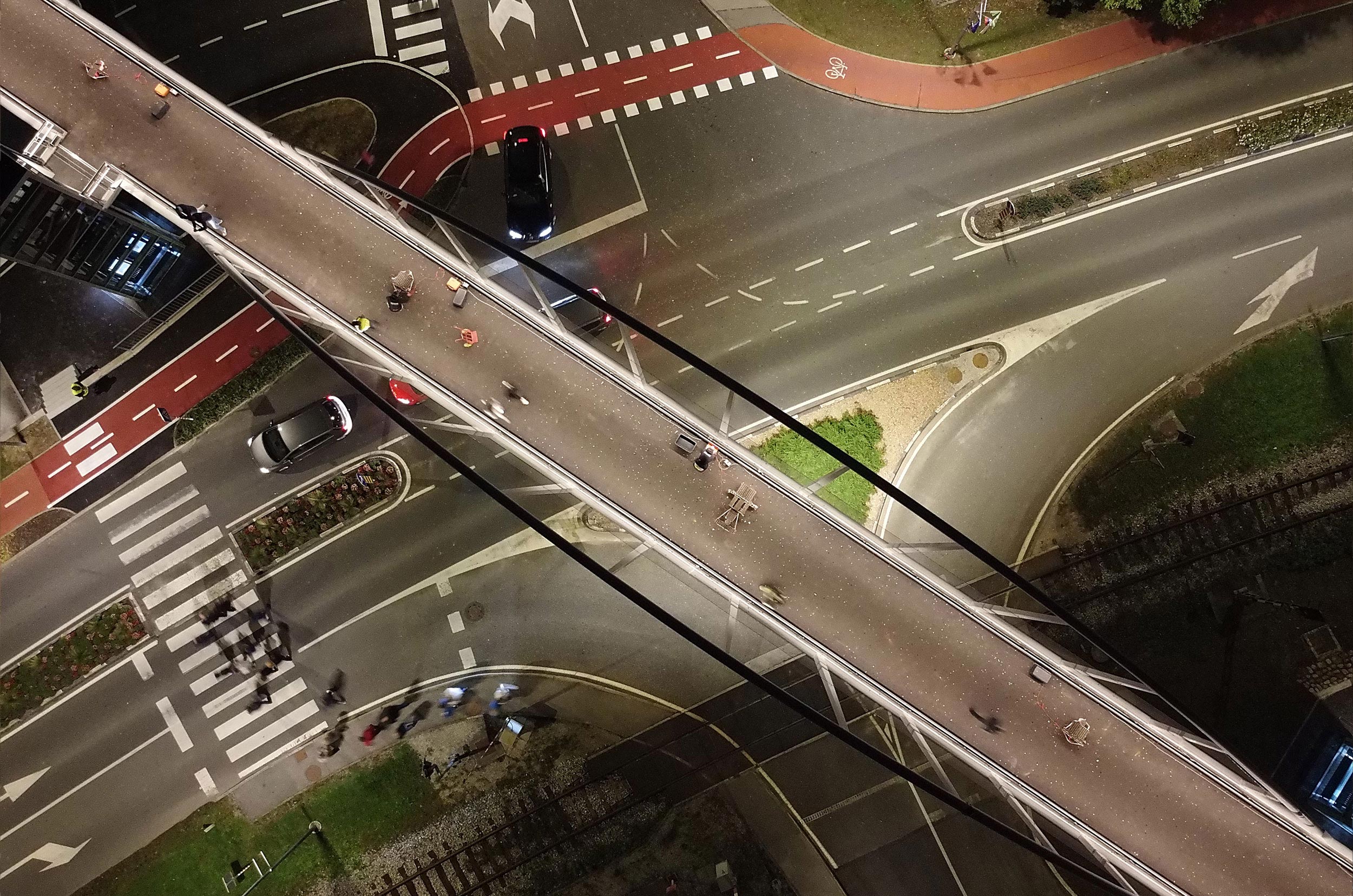

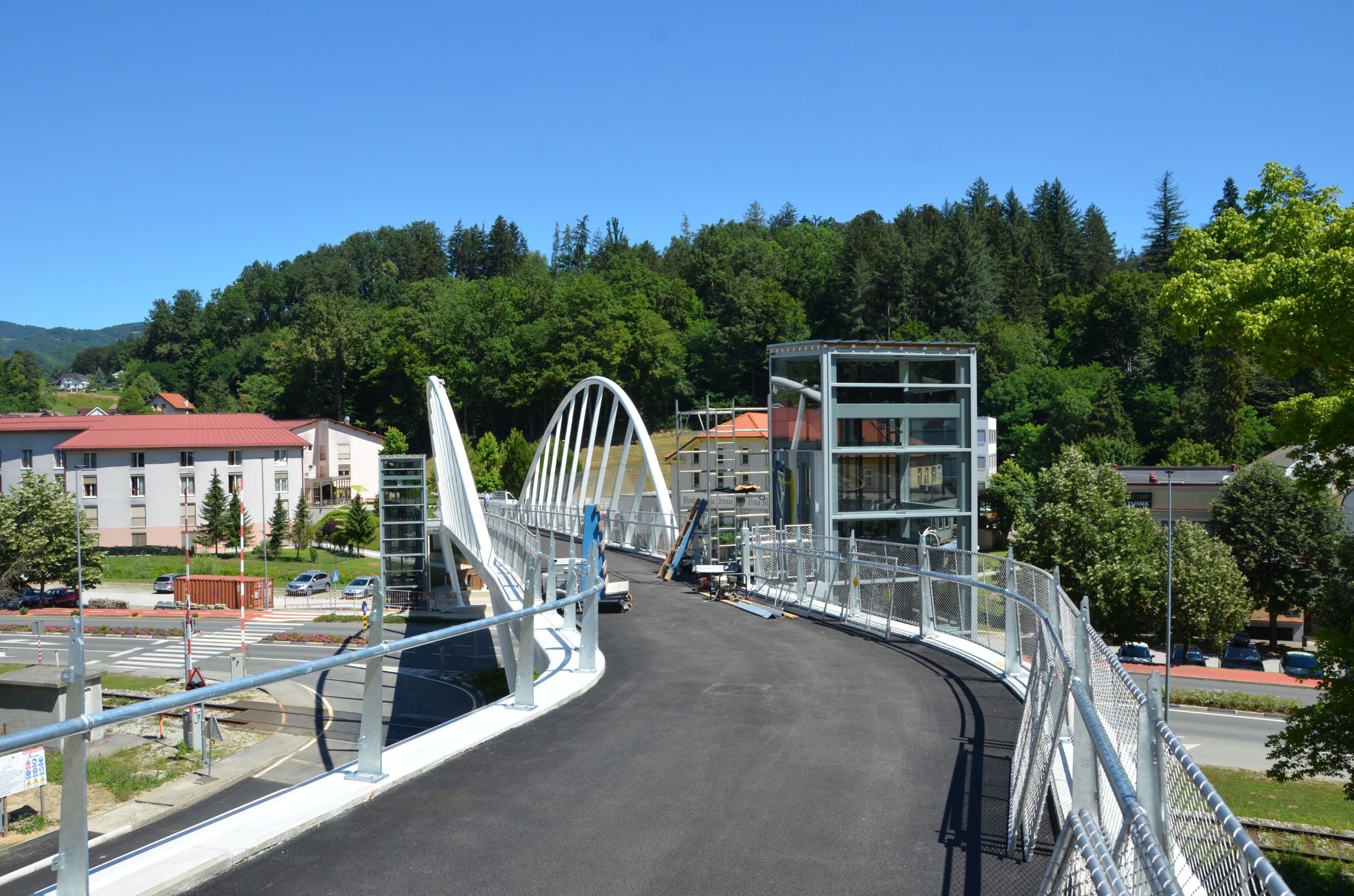

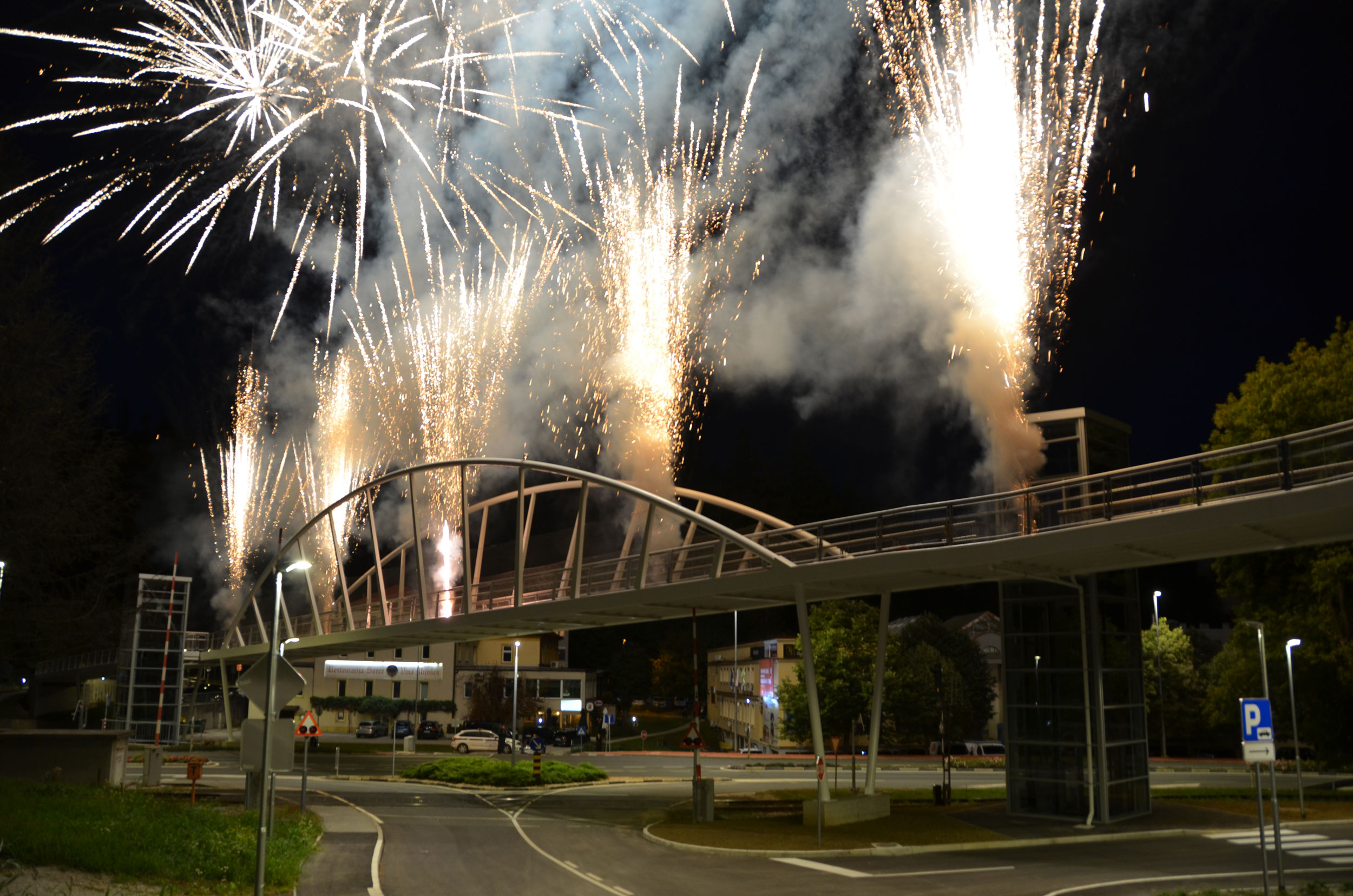

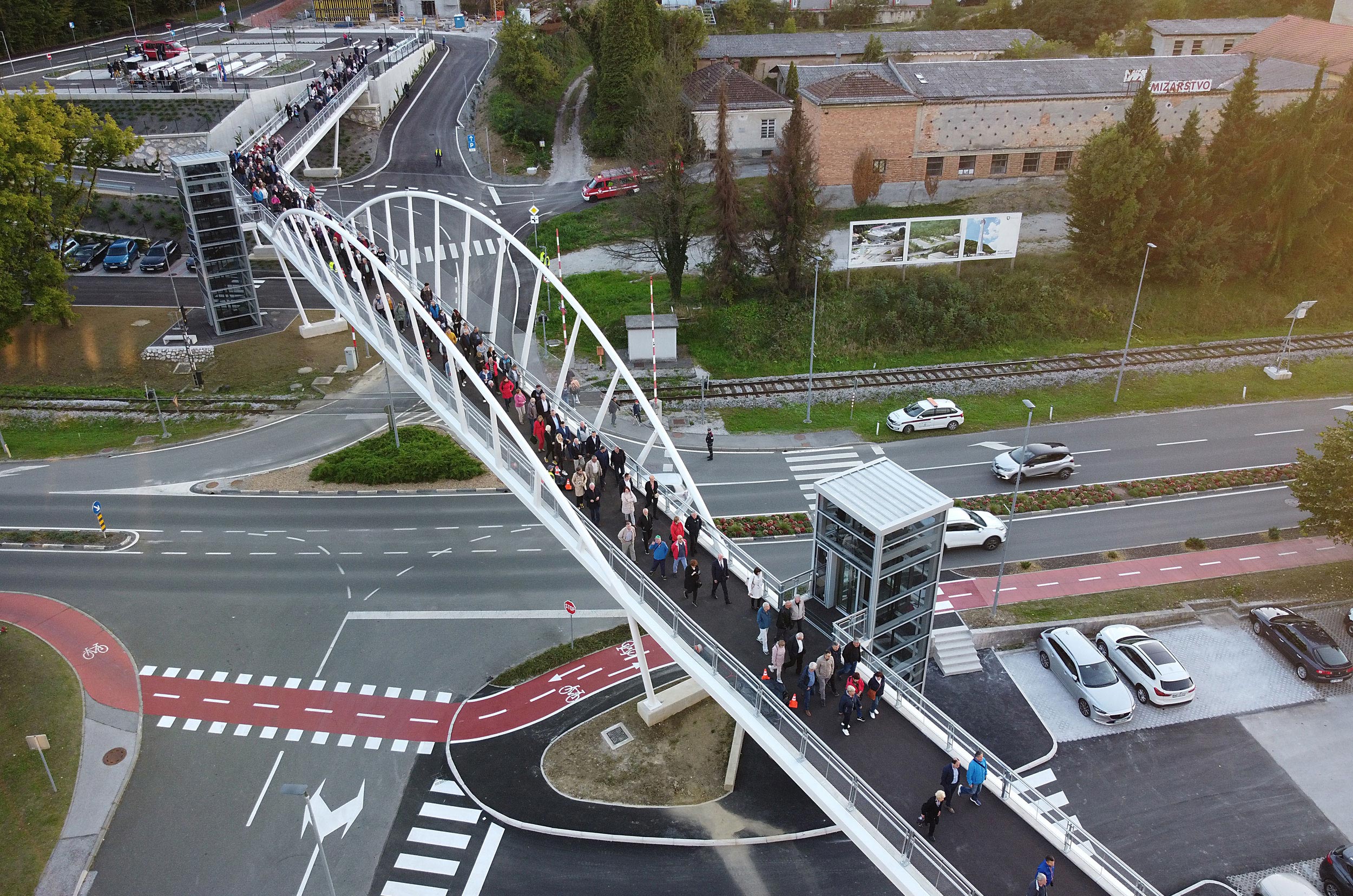

The efficient, environmentally responsible structure and attractive lighting of the overpass encourage people to walk and cycle. Two additional, vertical accesses with panoramic elevators will be particularly welcome to people with disabilities and the elderly.

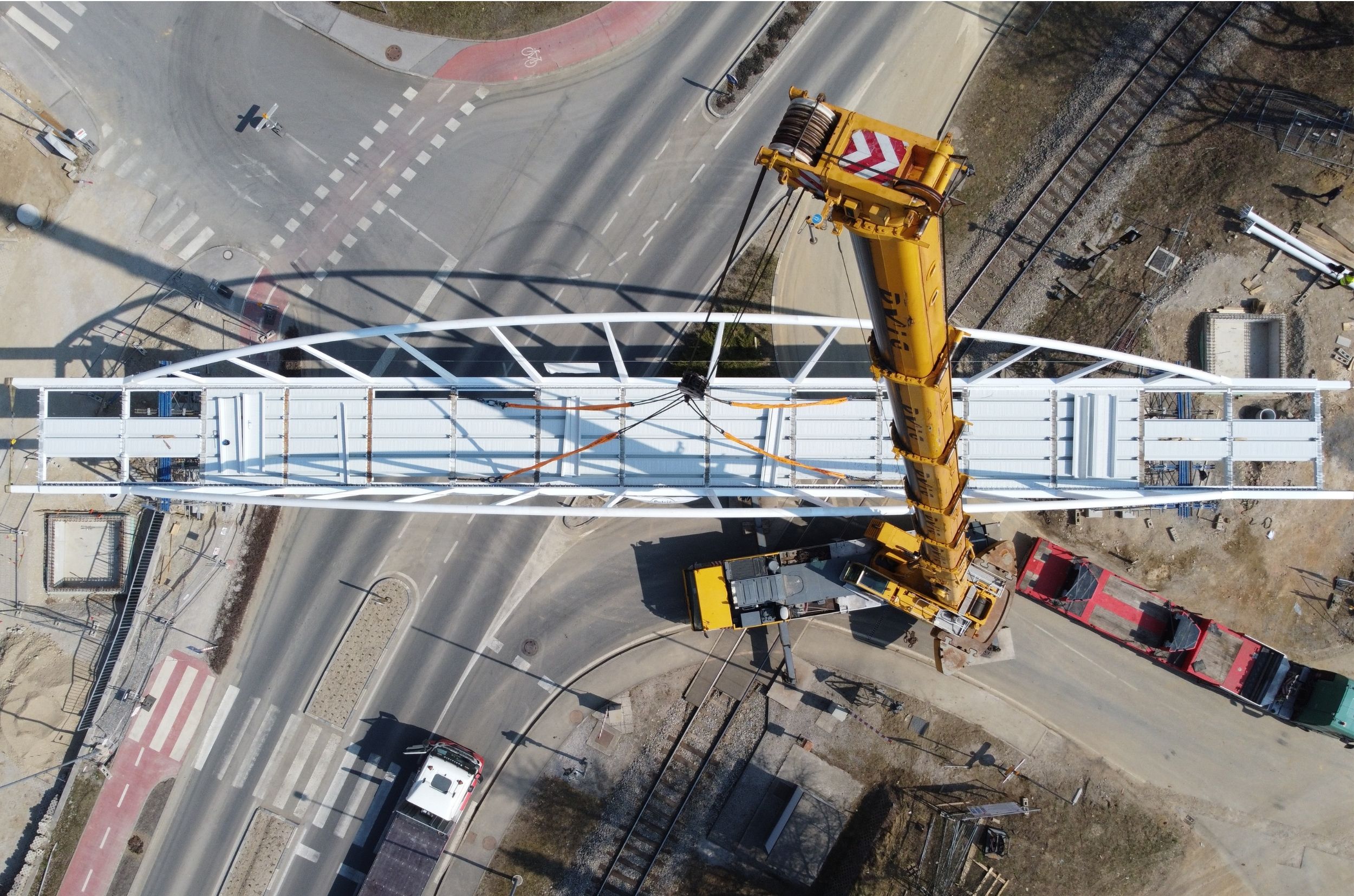

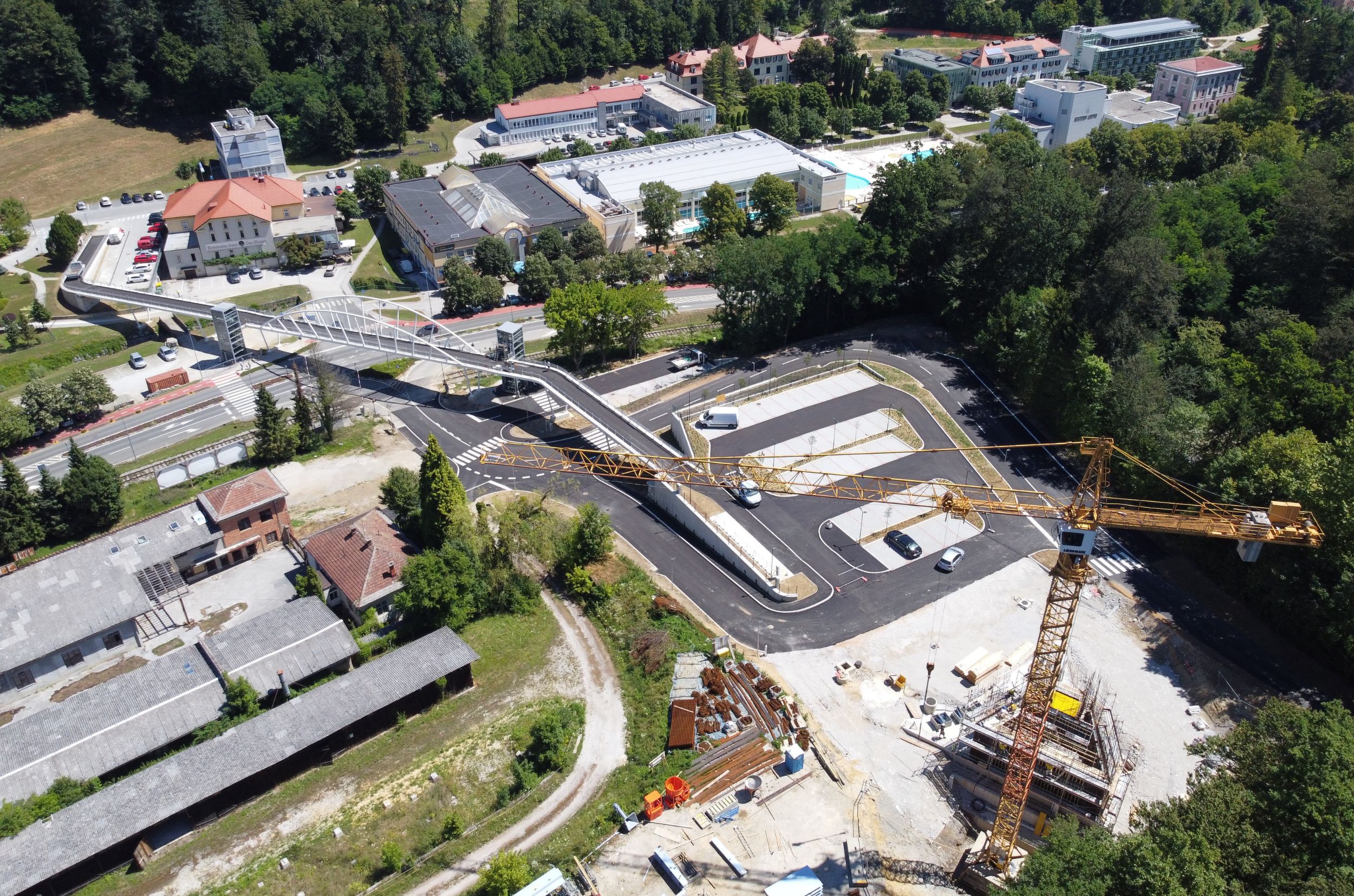

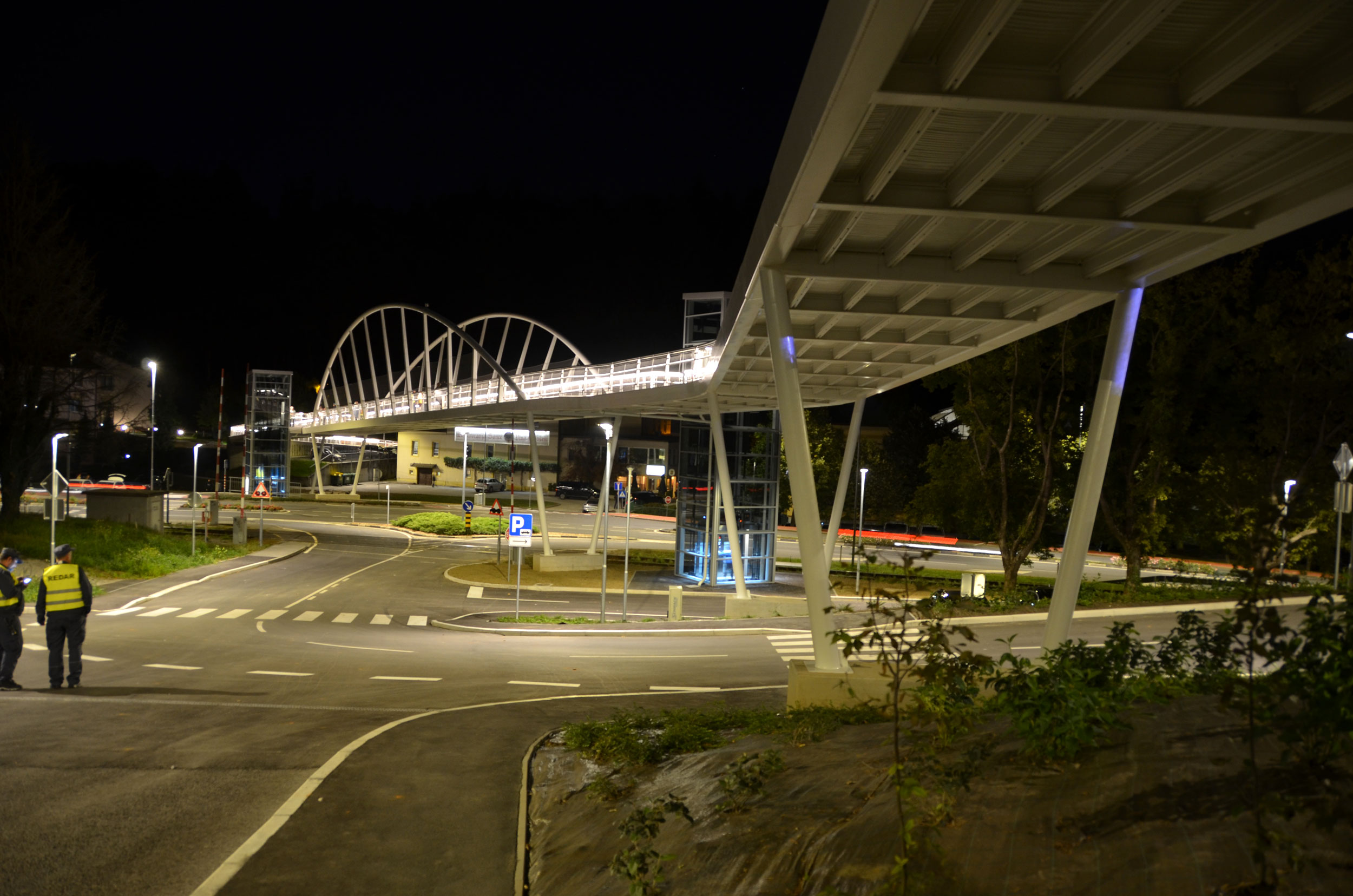

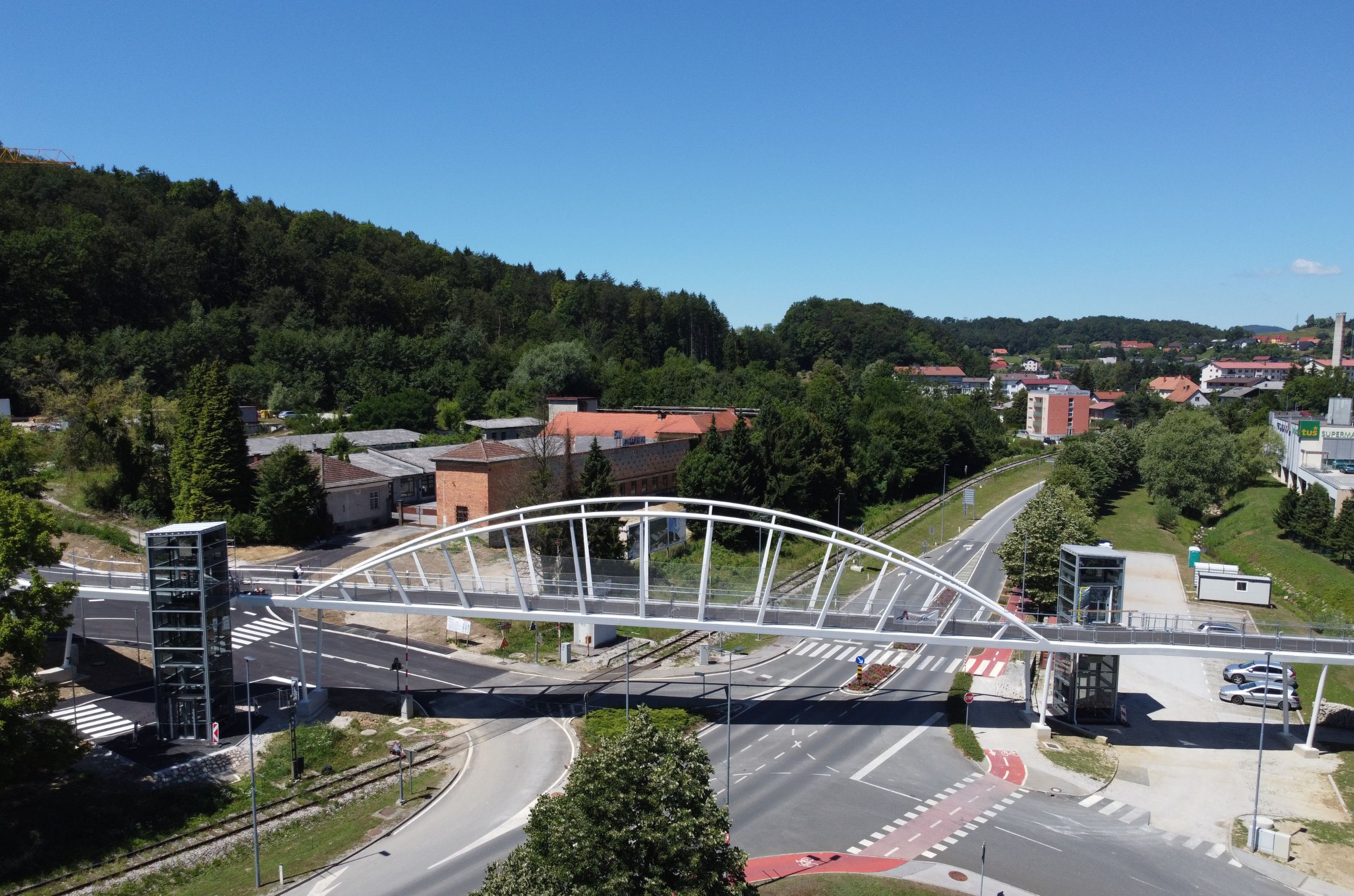

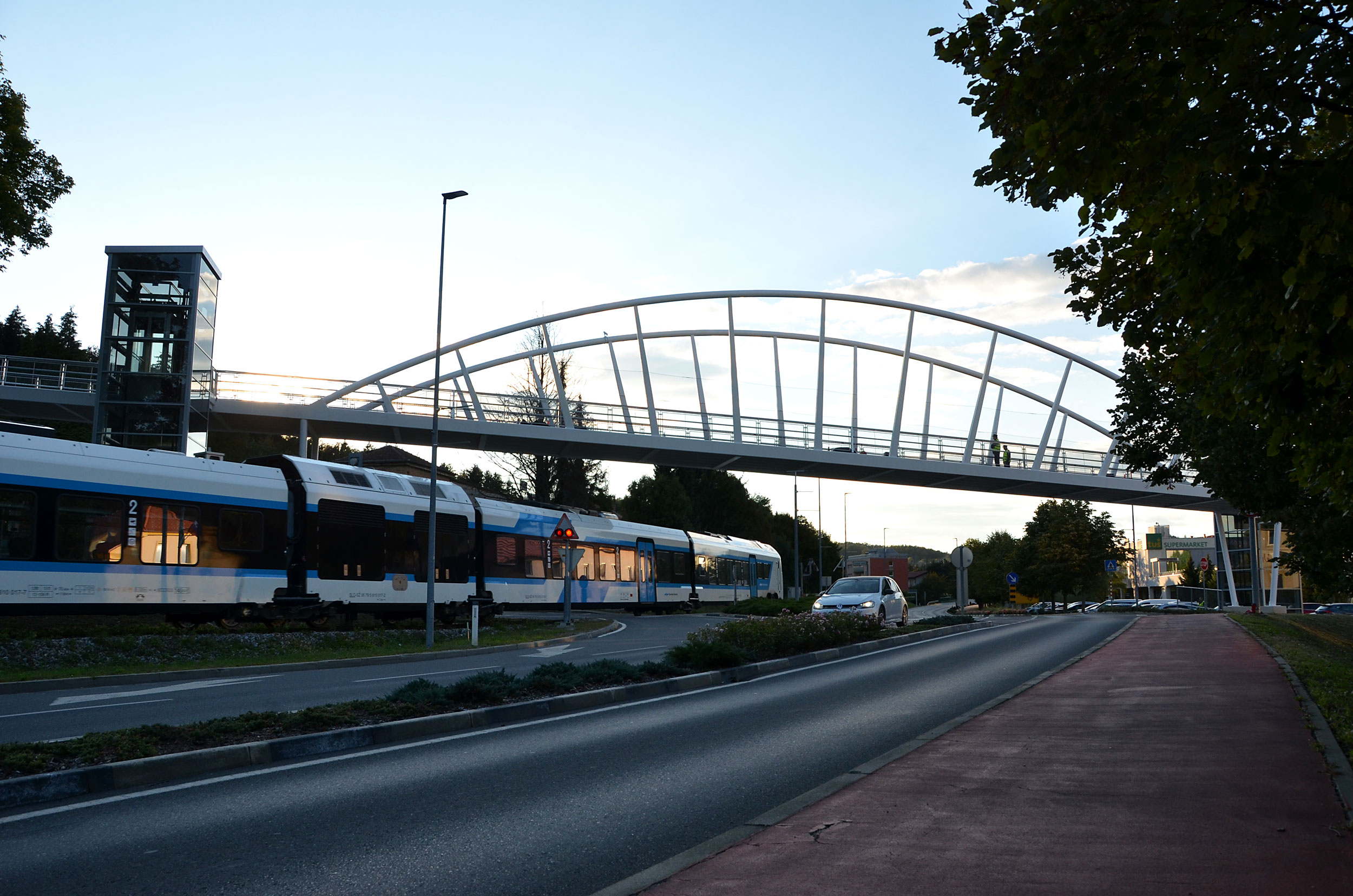

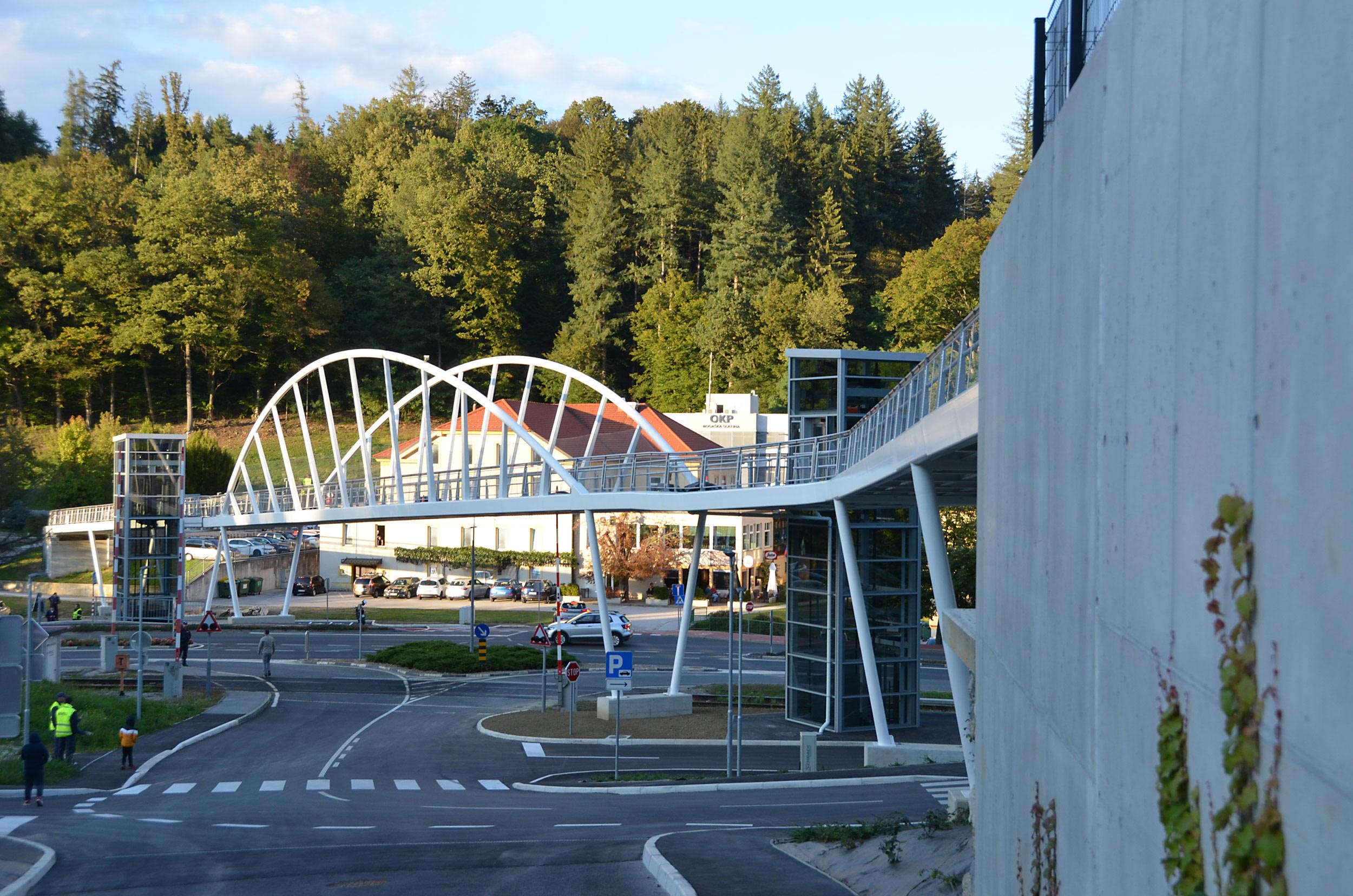

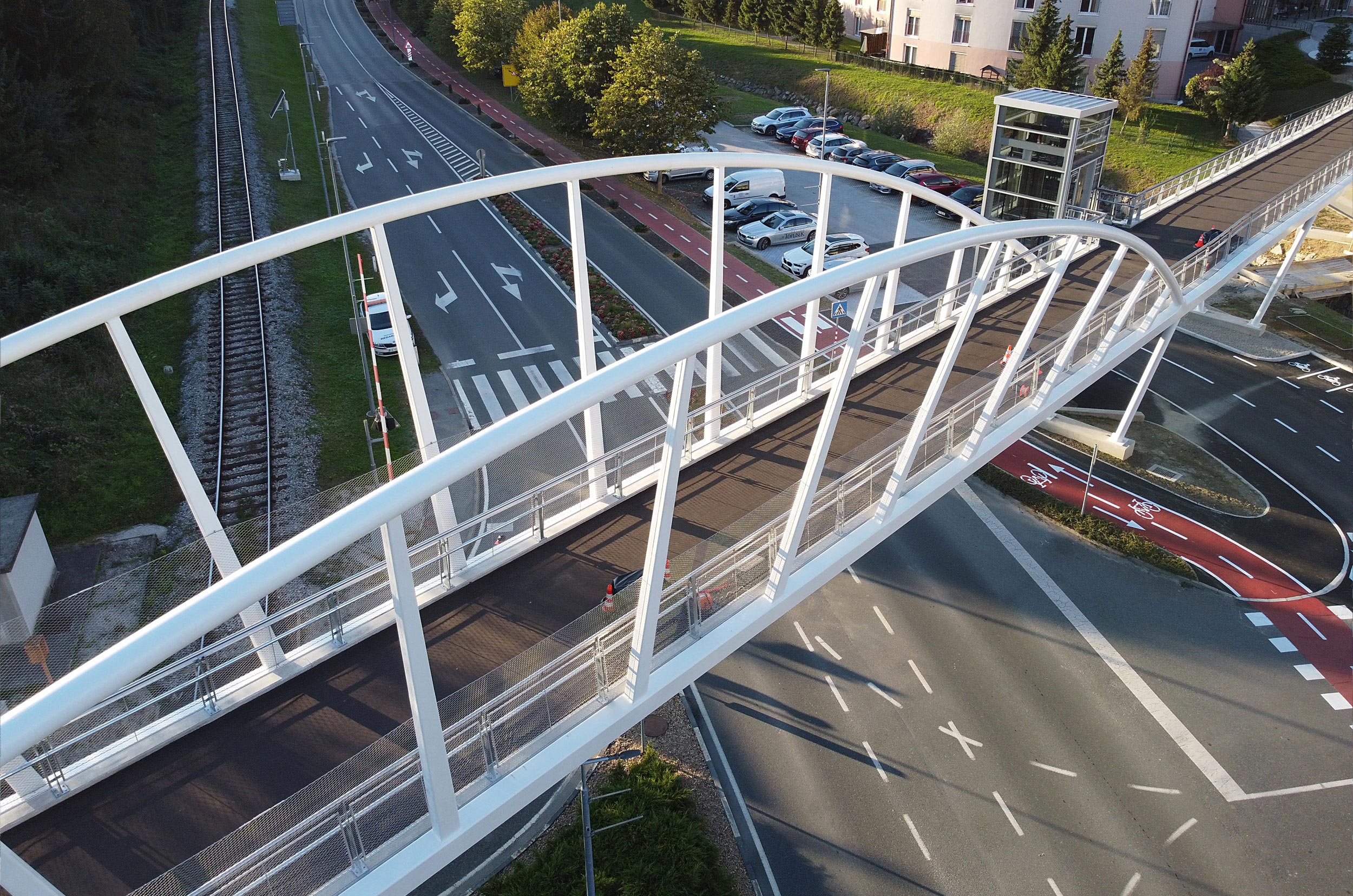

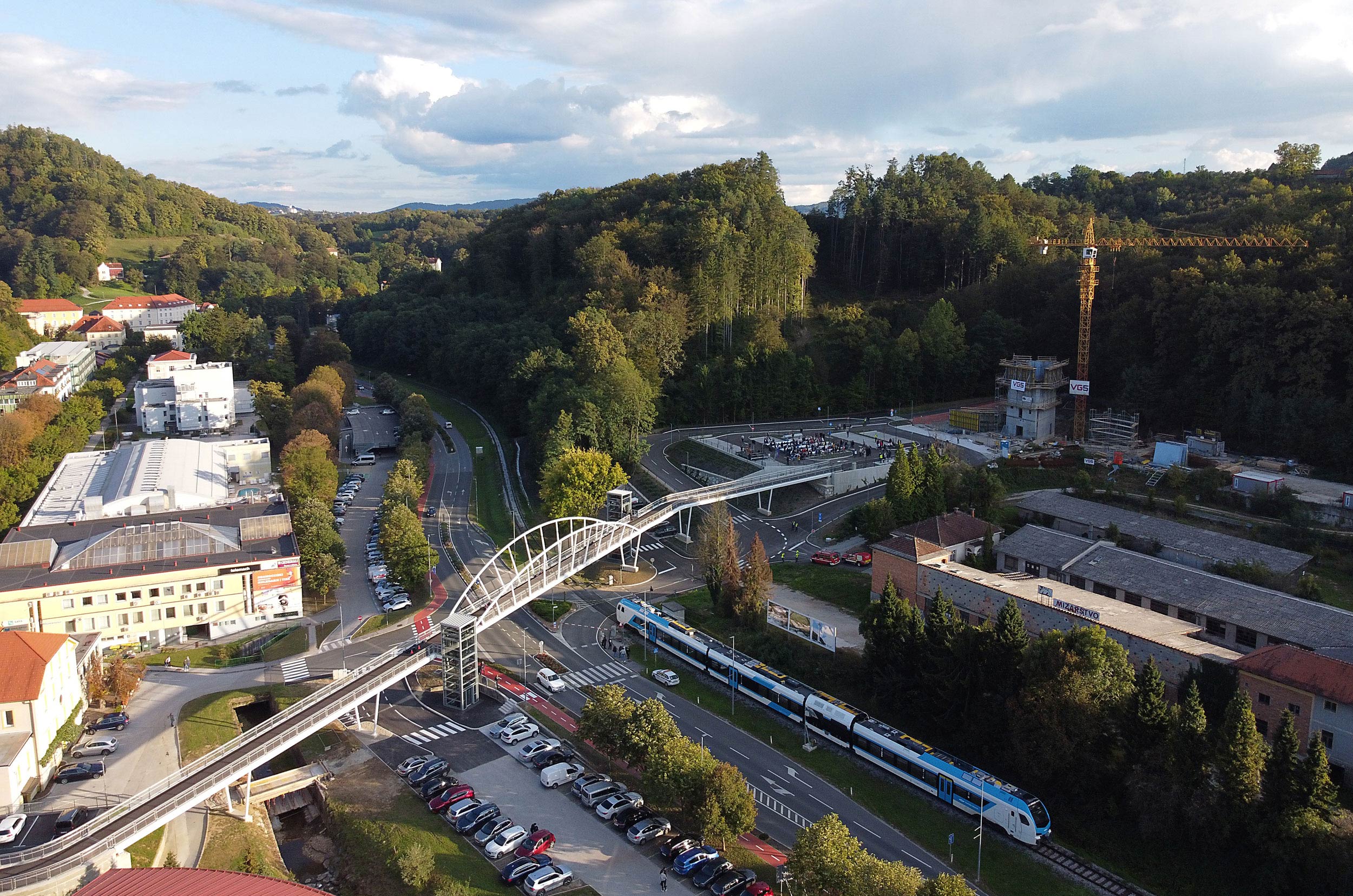

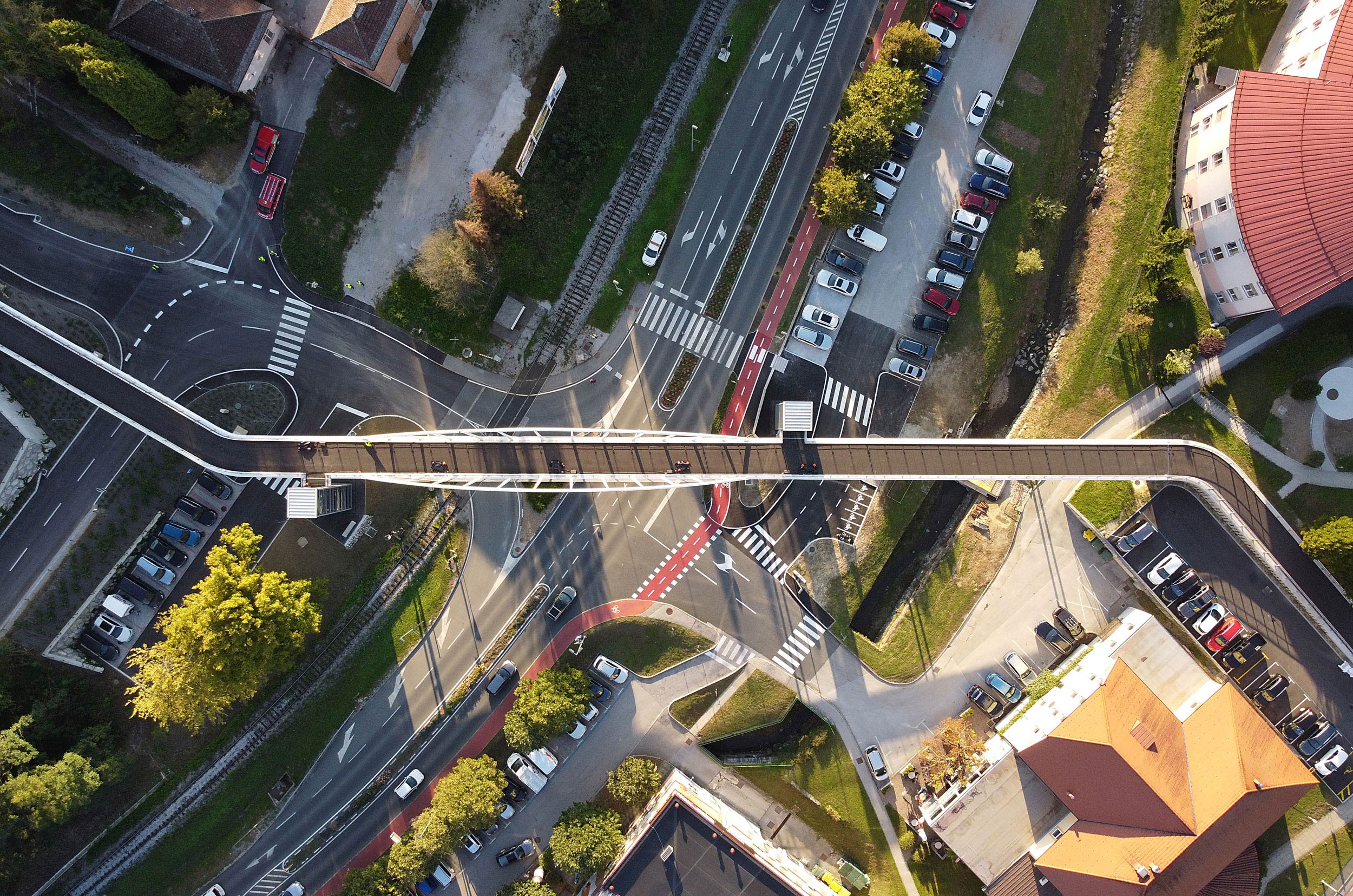

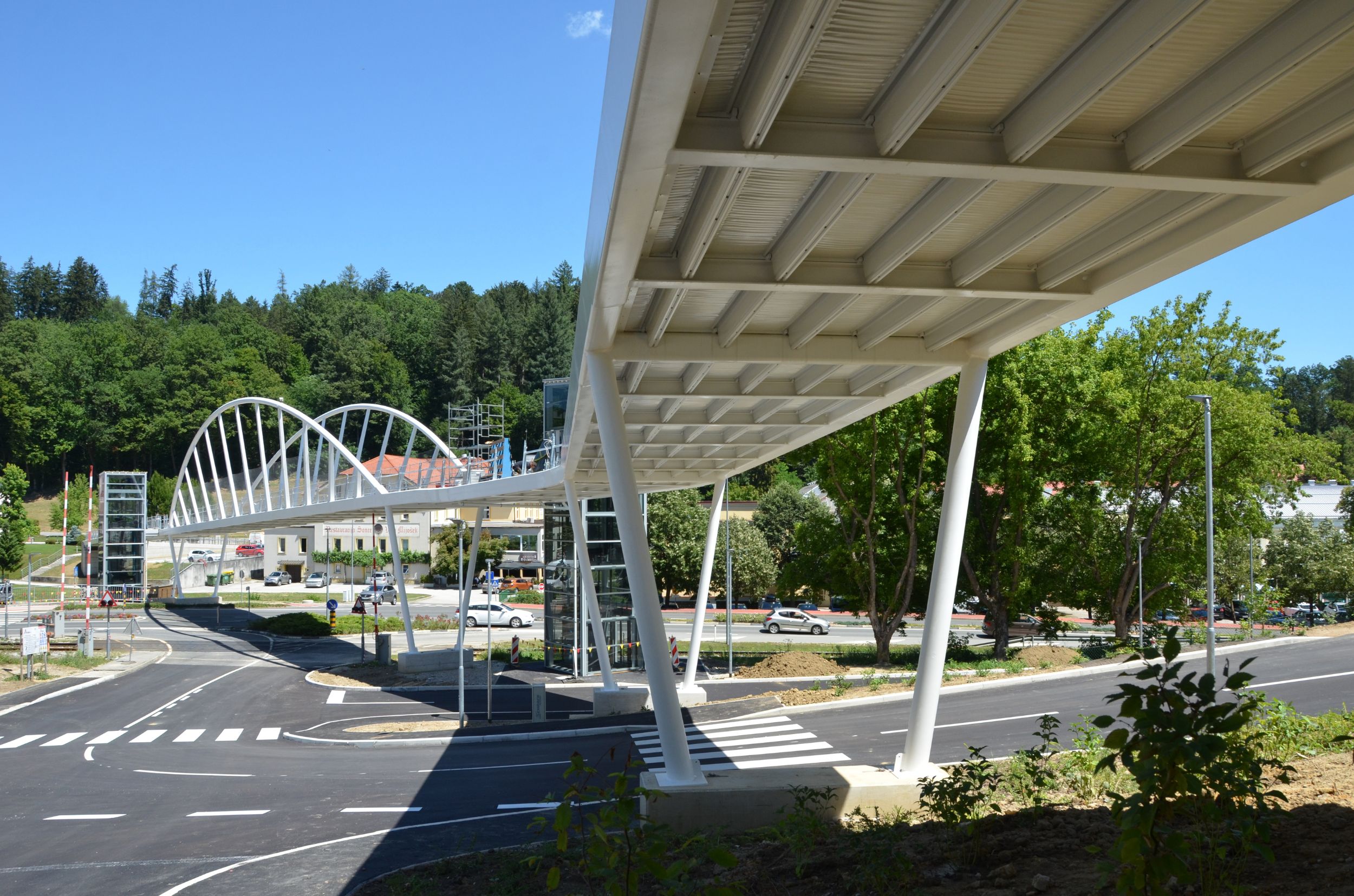

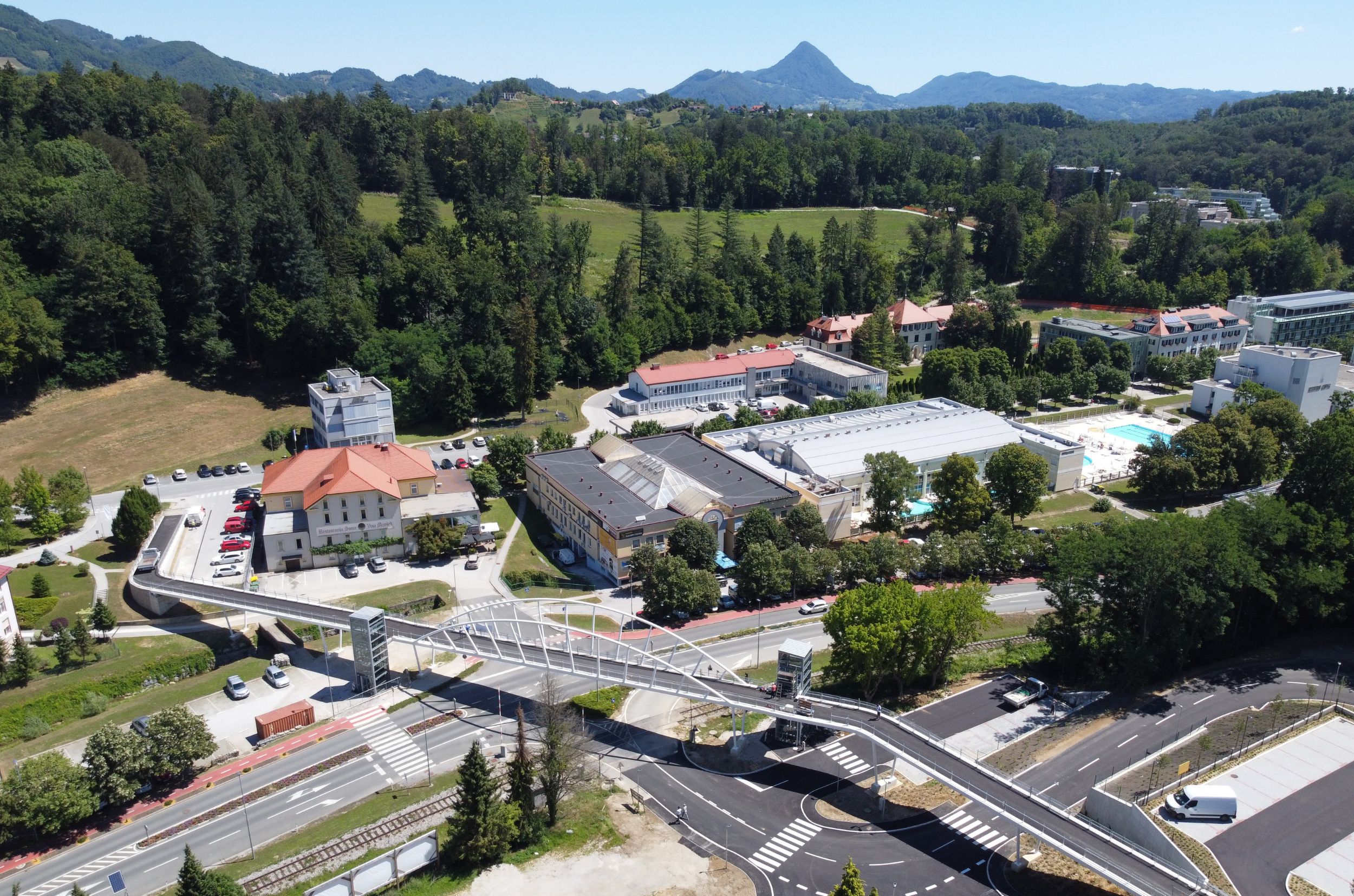

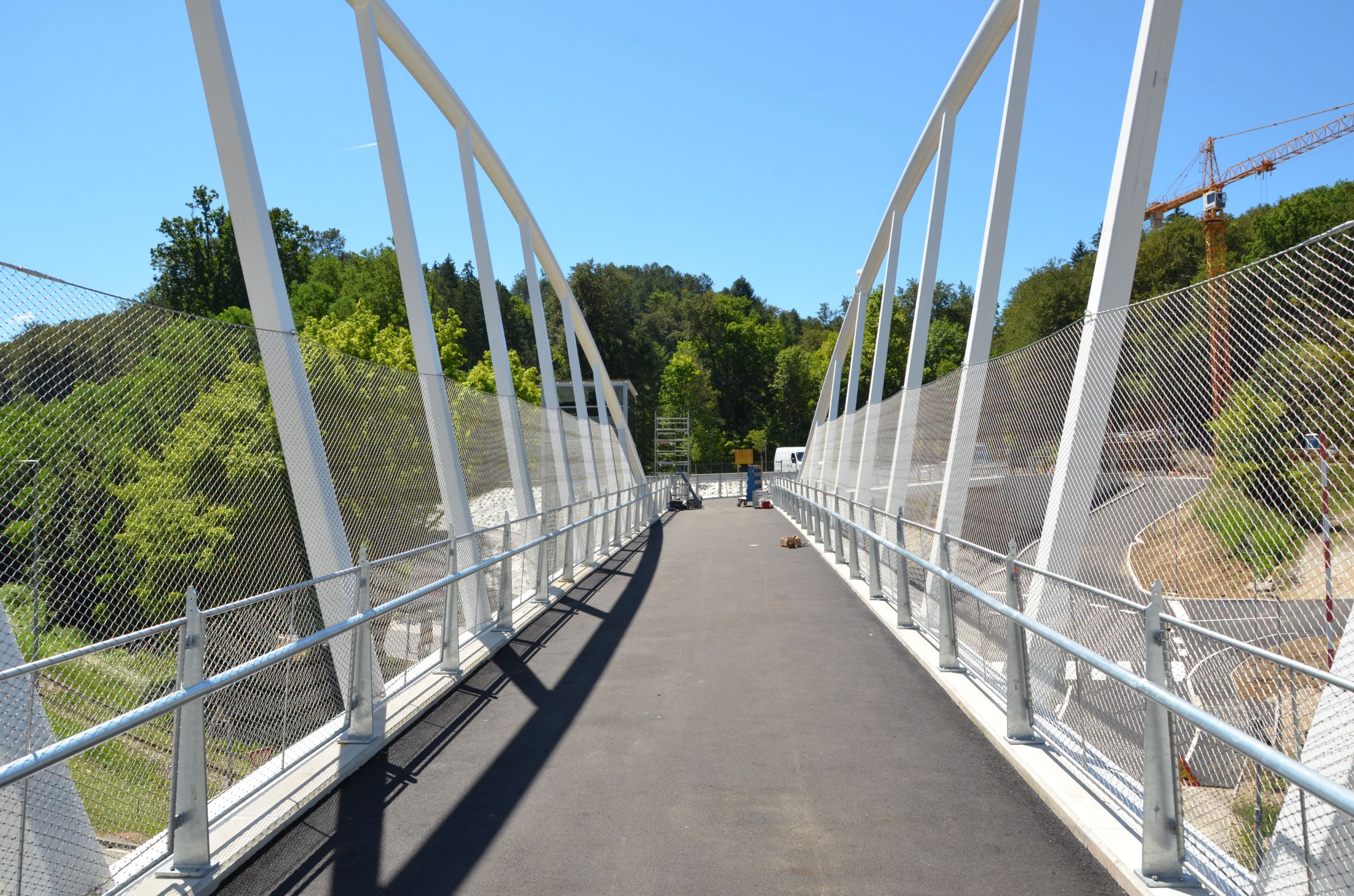

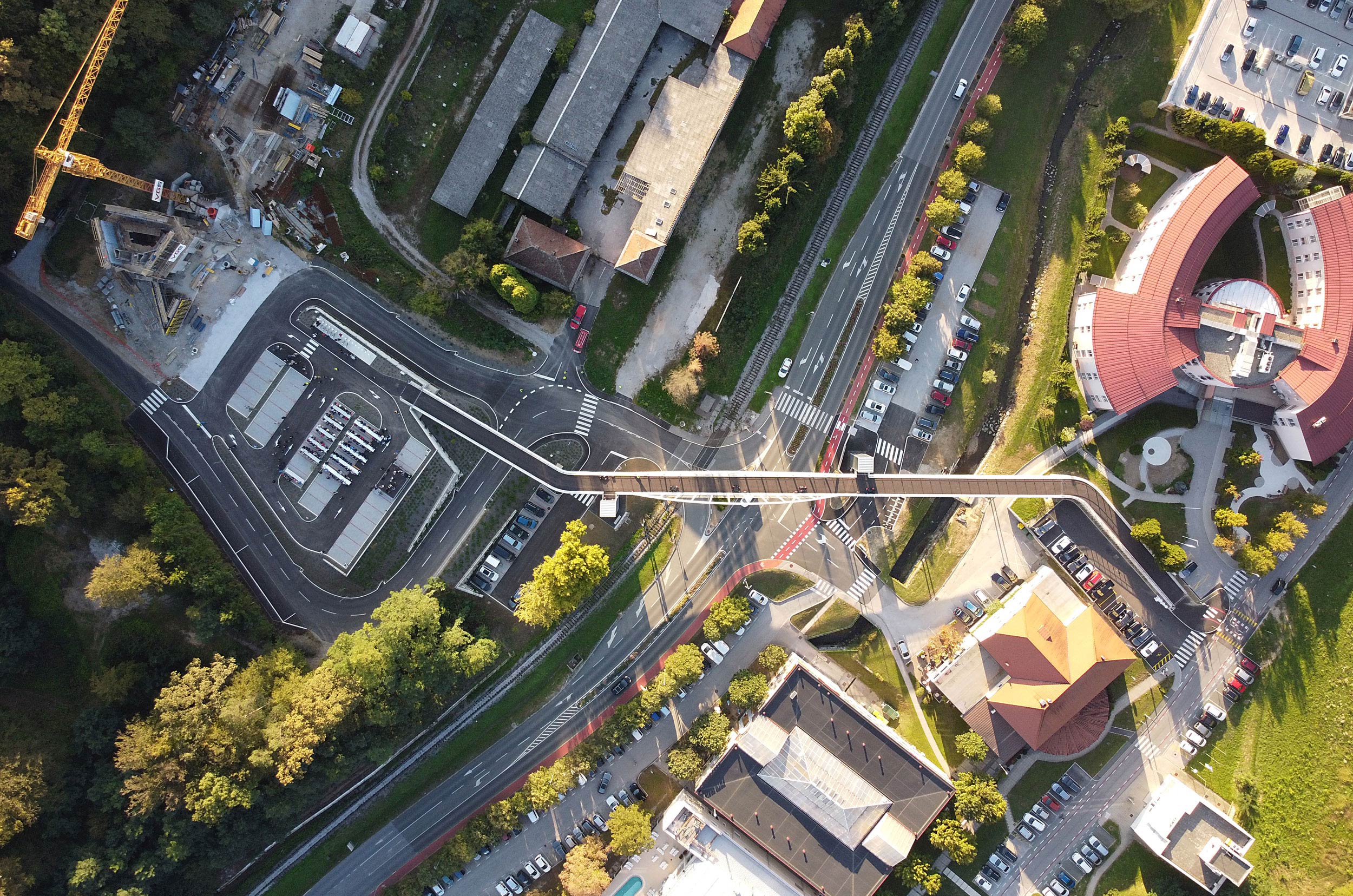

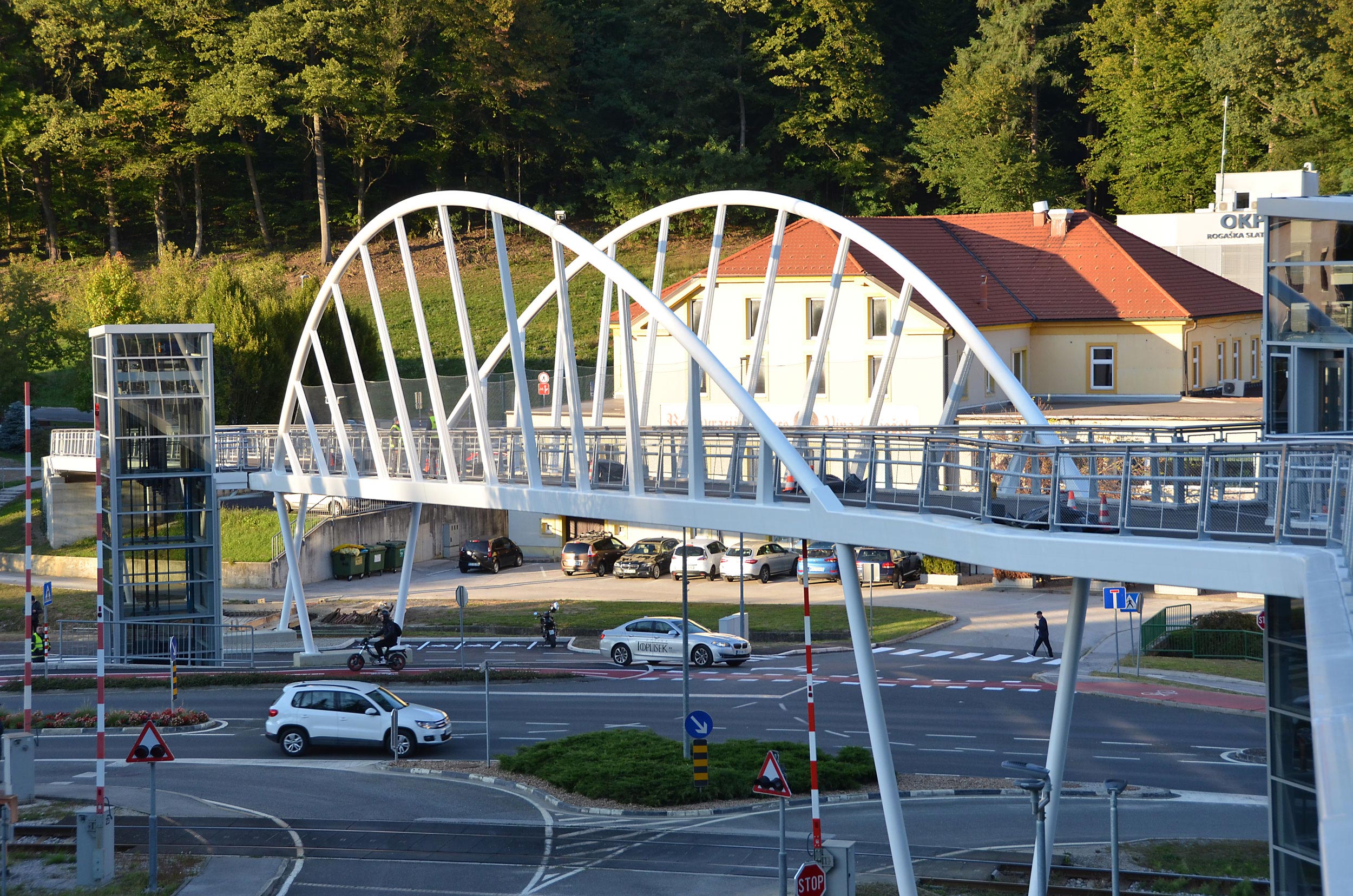

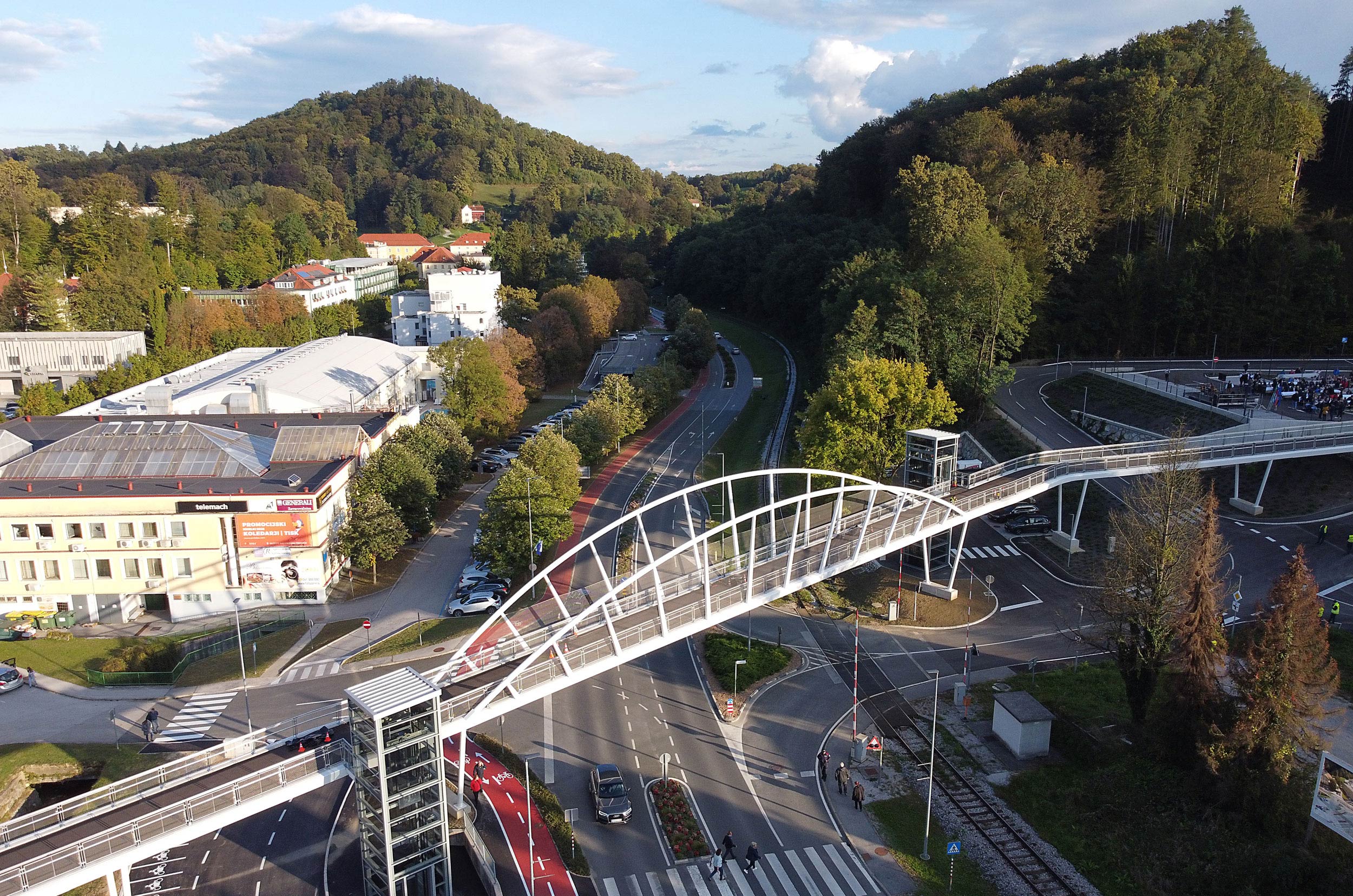

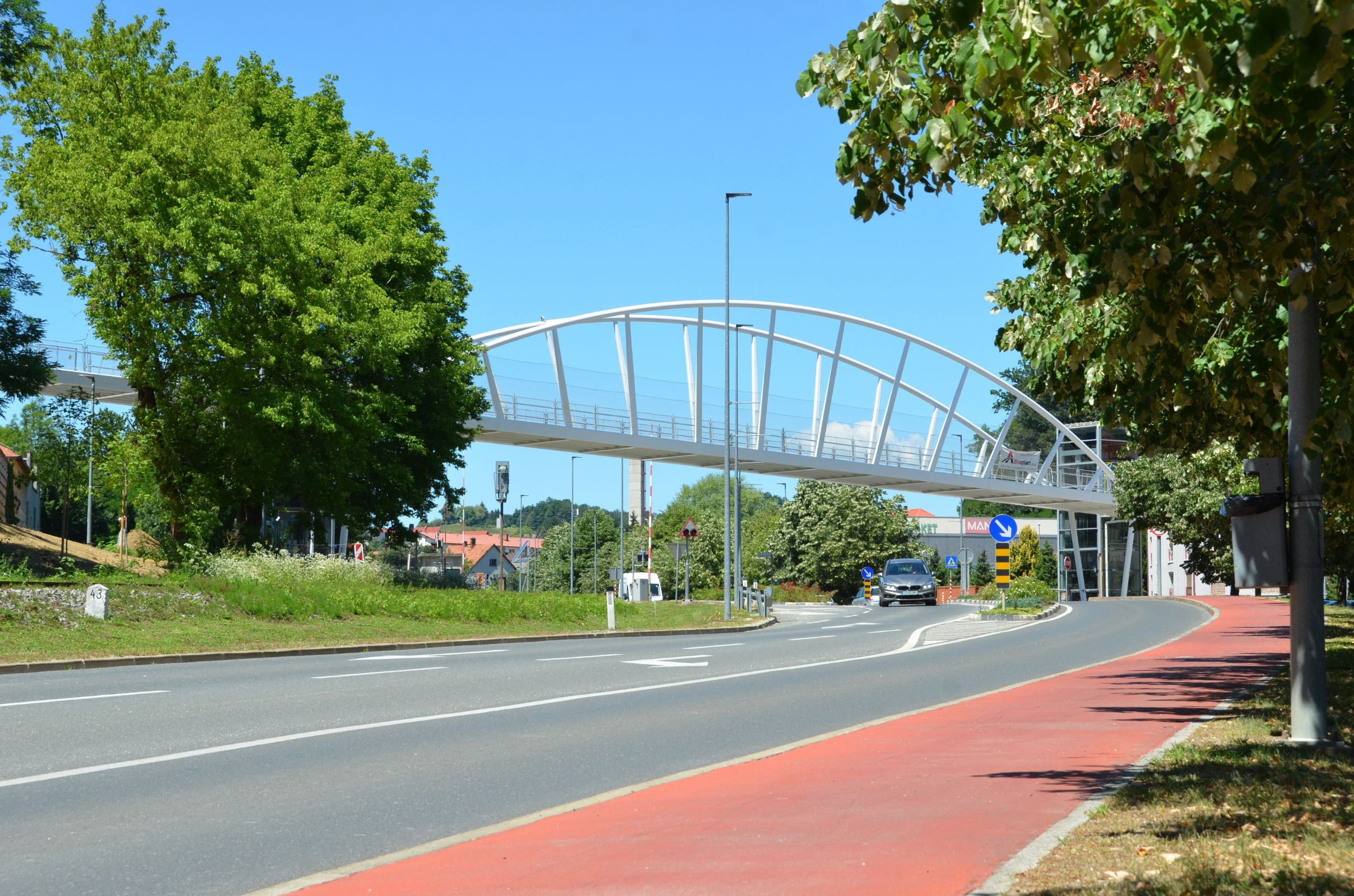

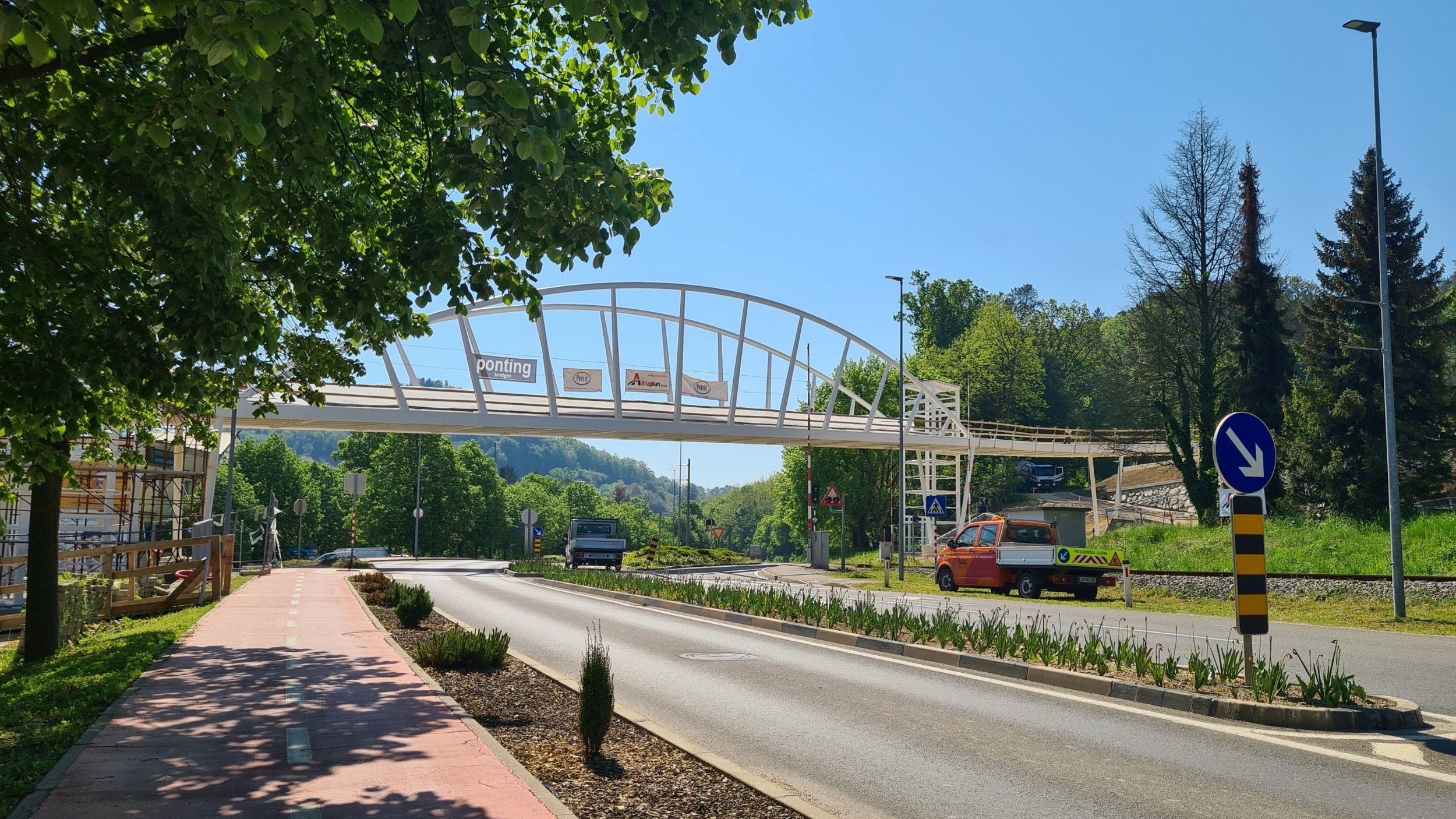

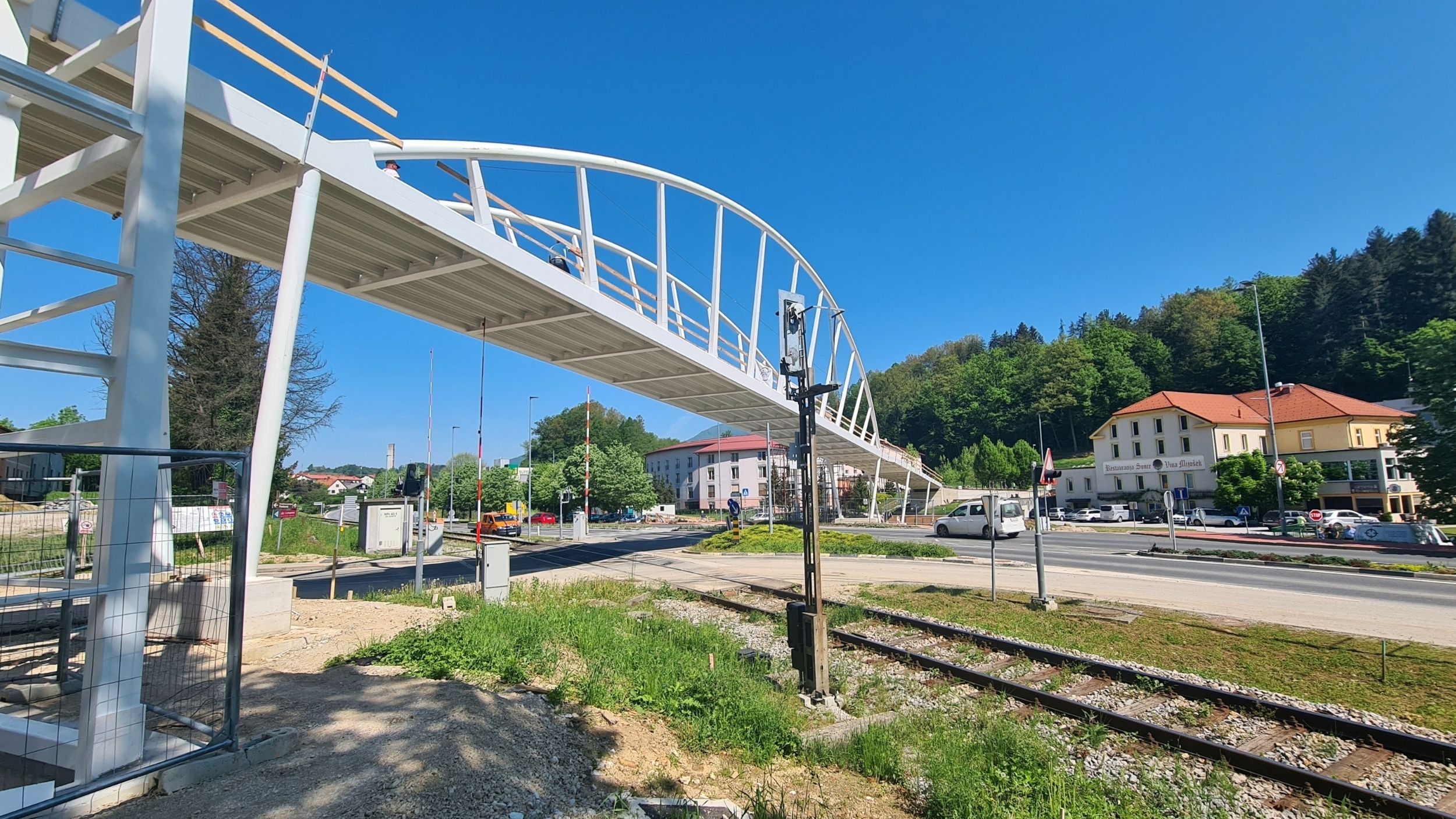

The transparent curved steel structure has one larger, 43-meter-long arch span, spanning a main regional road and railway. Ponting Bridges are the designers of the new, 177.5-meter-long and 3.5-meter-wide overpass structure for pedestrian and cyclist. Works were carried out by contractors Adriaplan and Petrič.

Project type
Pedestrian and cyclist bridge
Location
Rogaška Slatina, Slovenia
Year
2022
Ponting Services
Conceptual design / Preliminary design / Final design / Detailed design
Length
177.5 meters
Max. span
43 meters
Width
3.5 meters
Foundation type

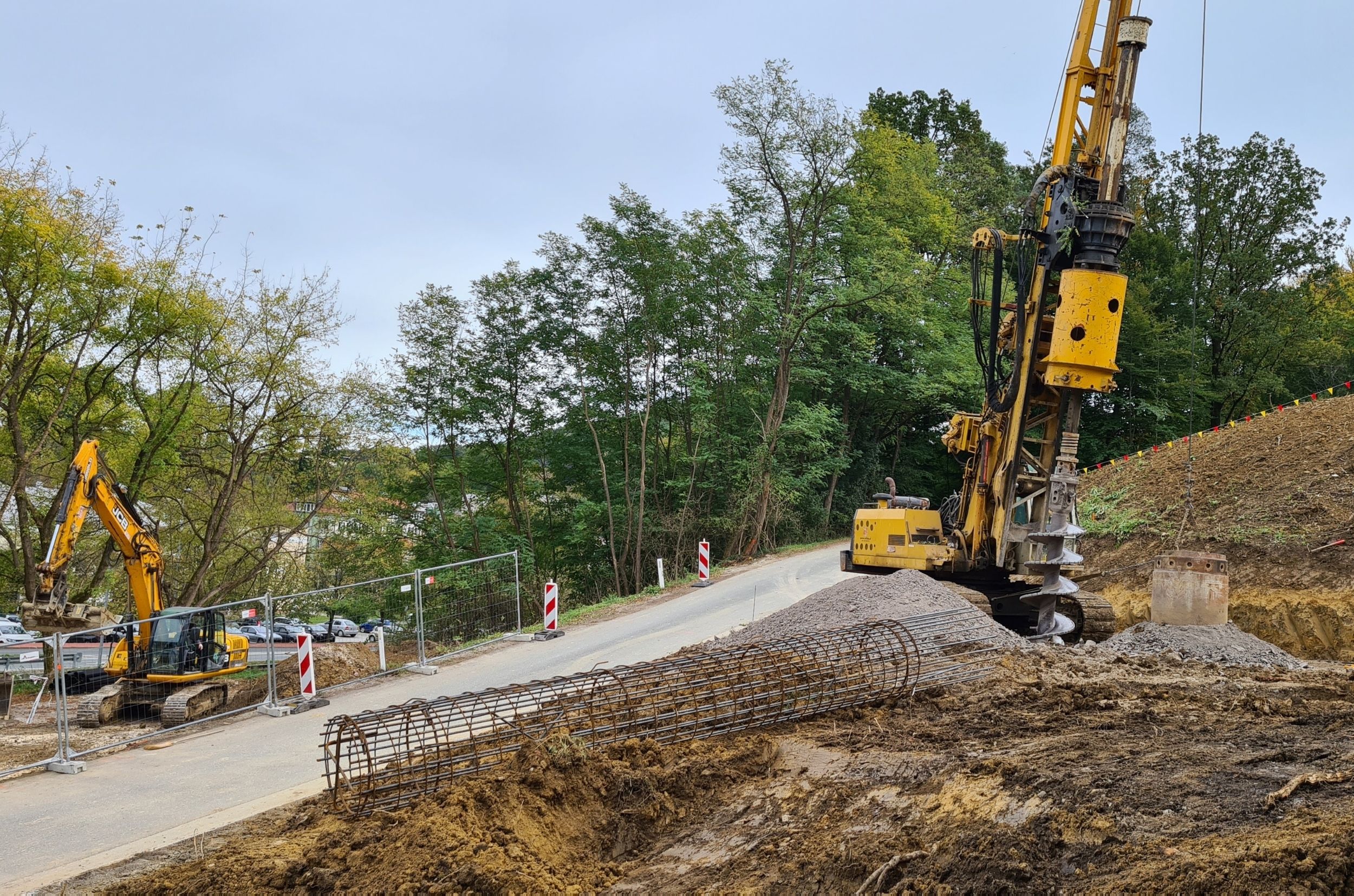

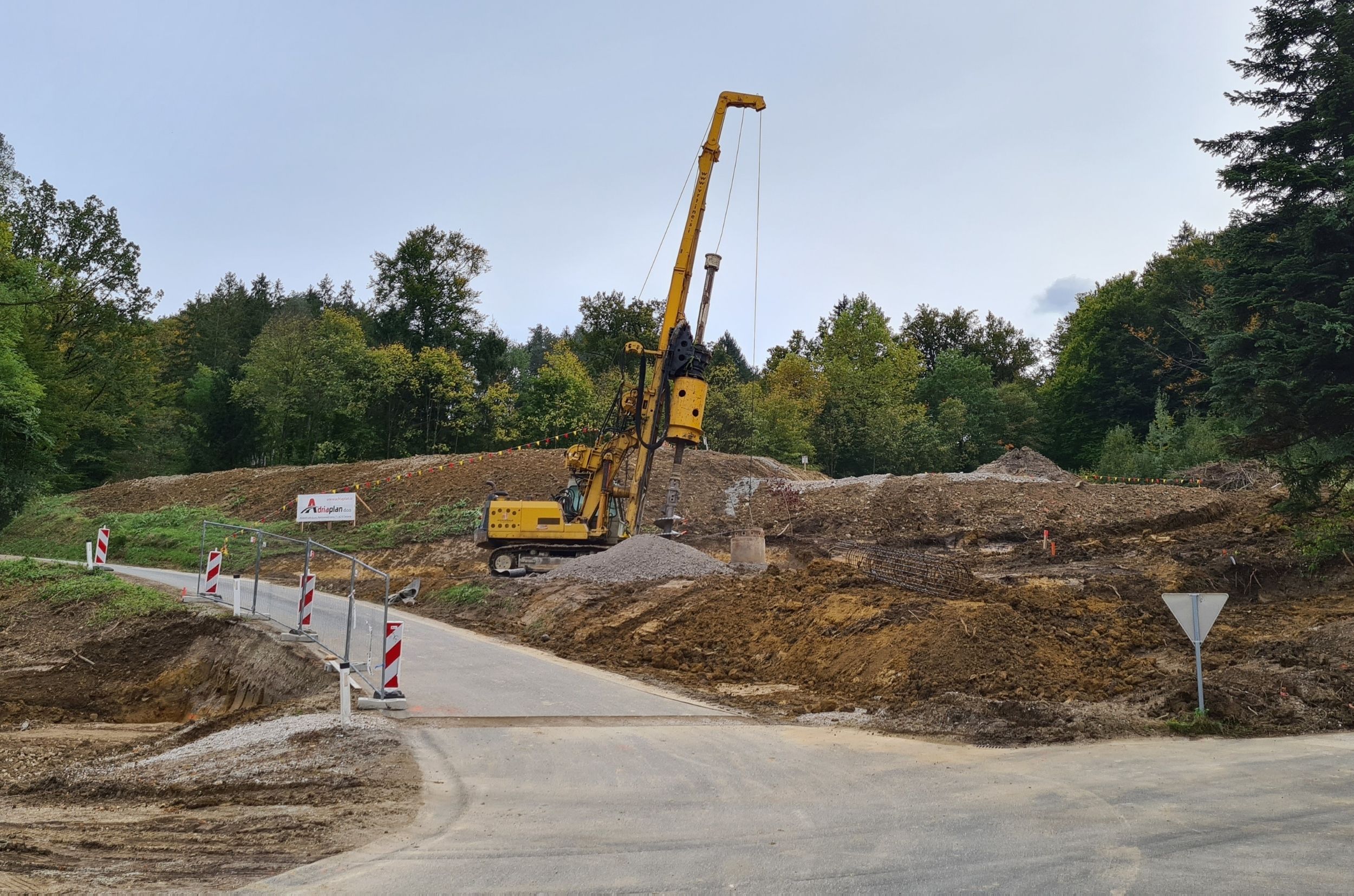

Deep on bored RC piles, diameter 1.00 m
Structure

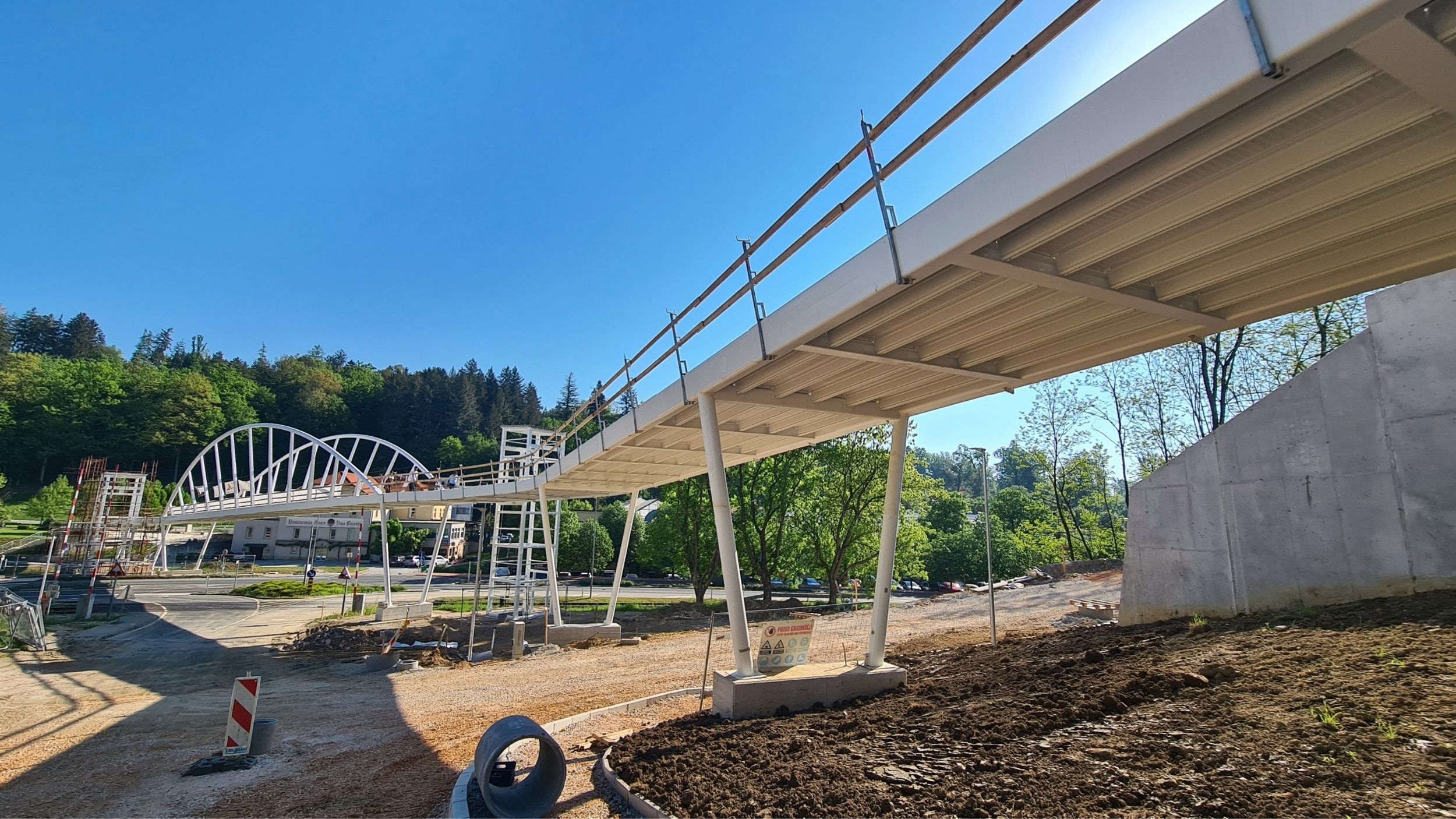

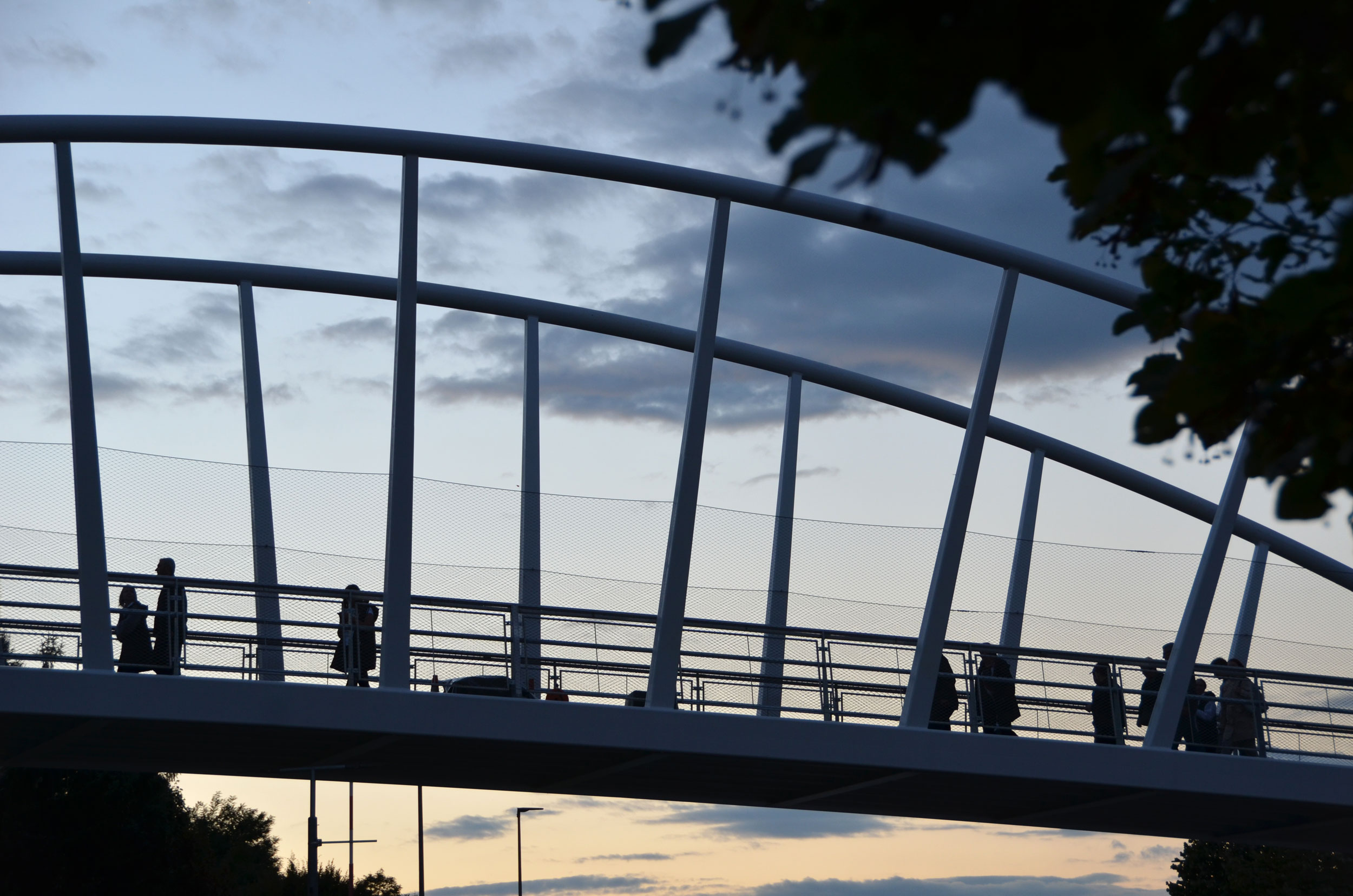

Steel/composite structure, tied arch in the main span
Construction

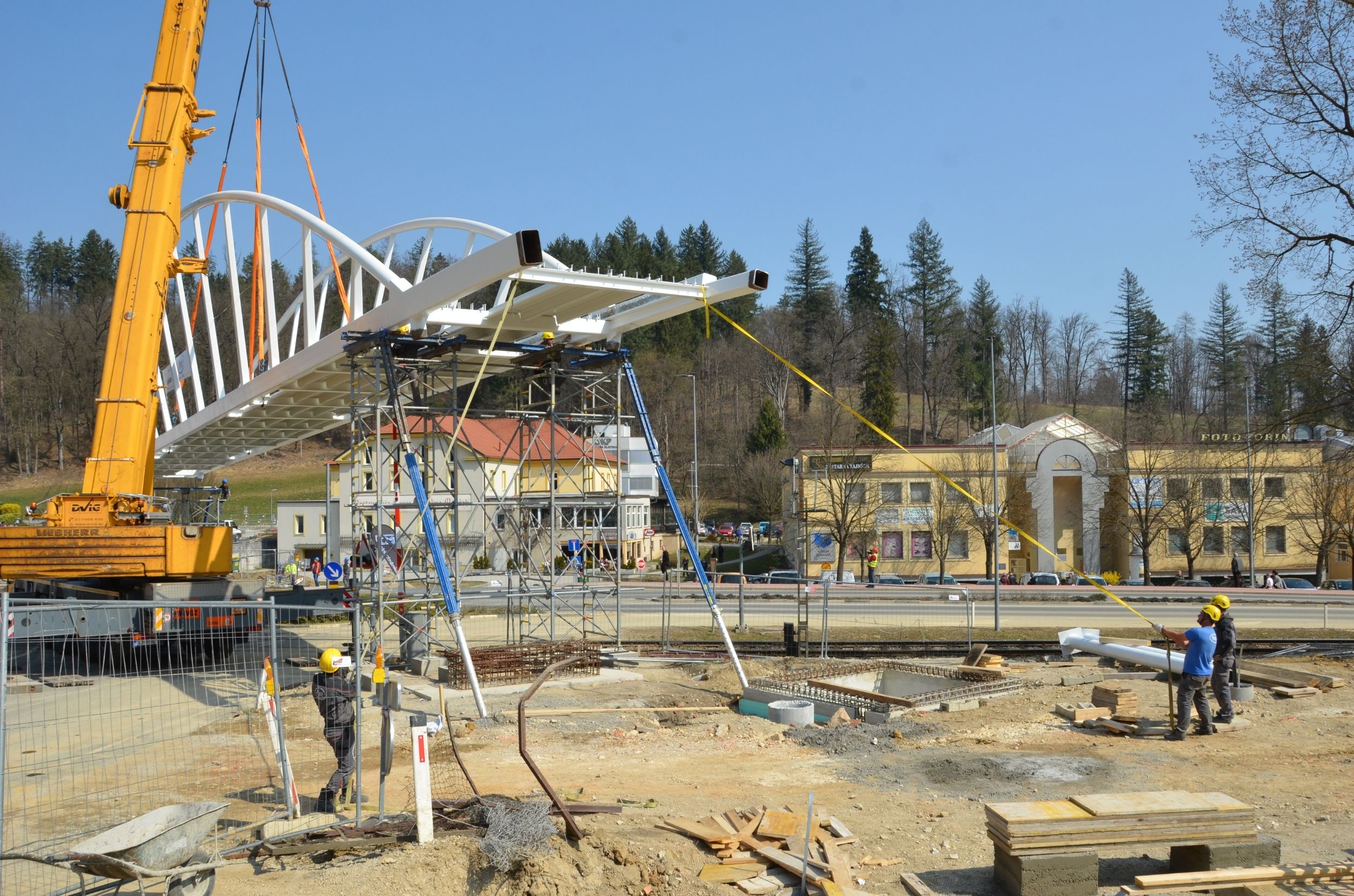

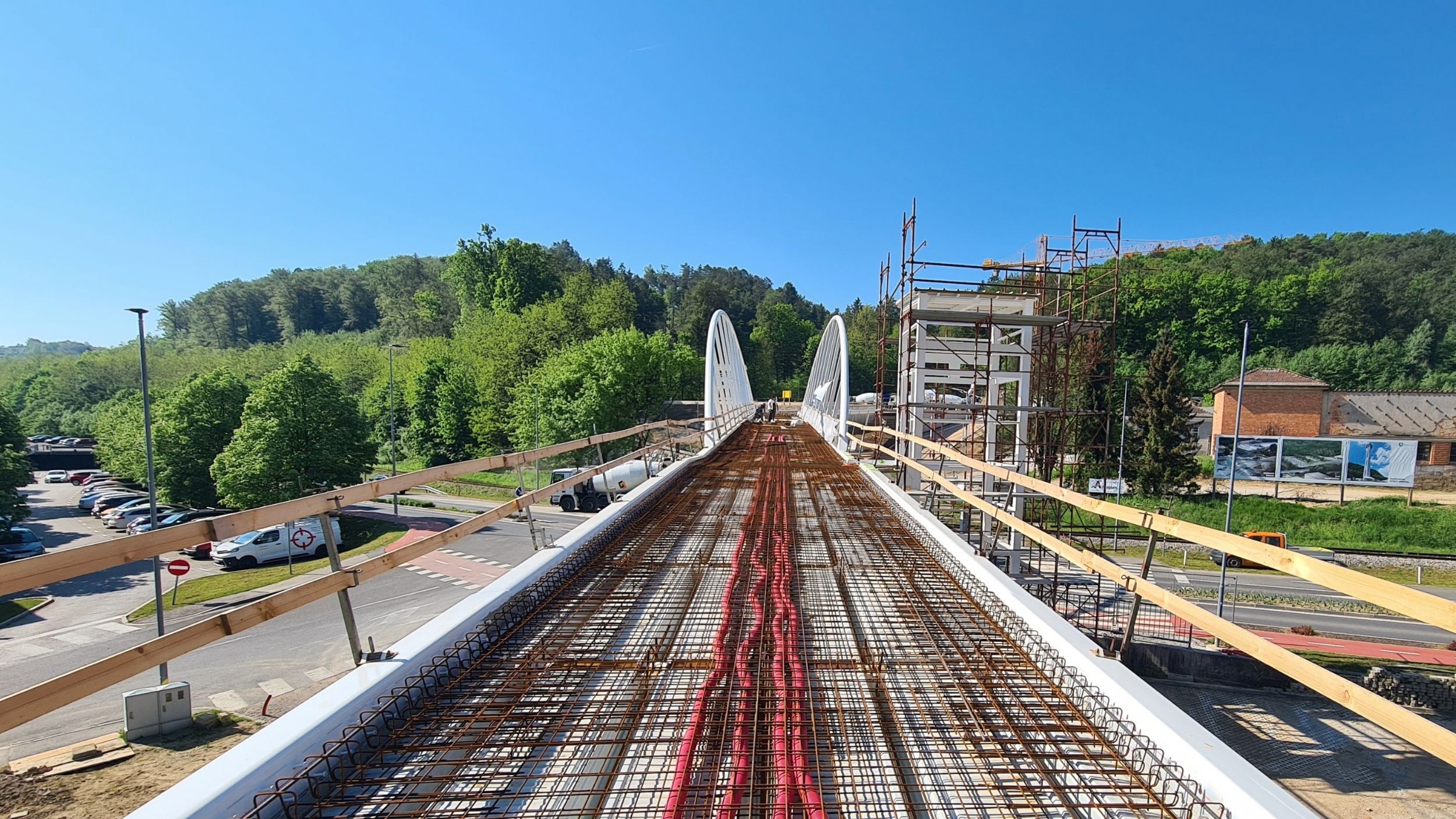

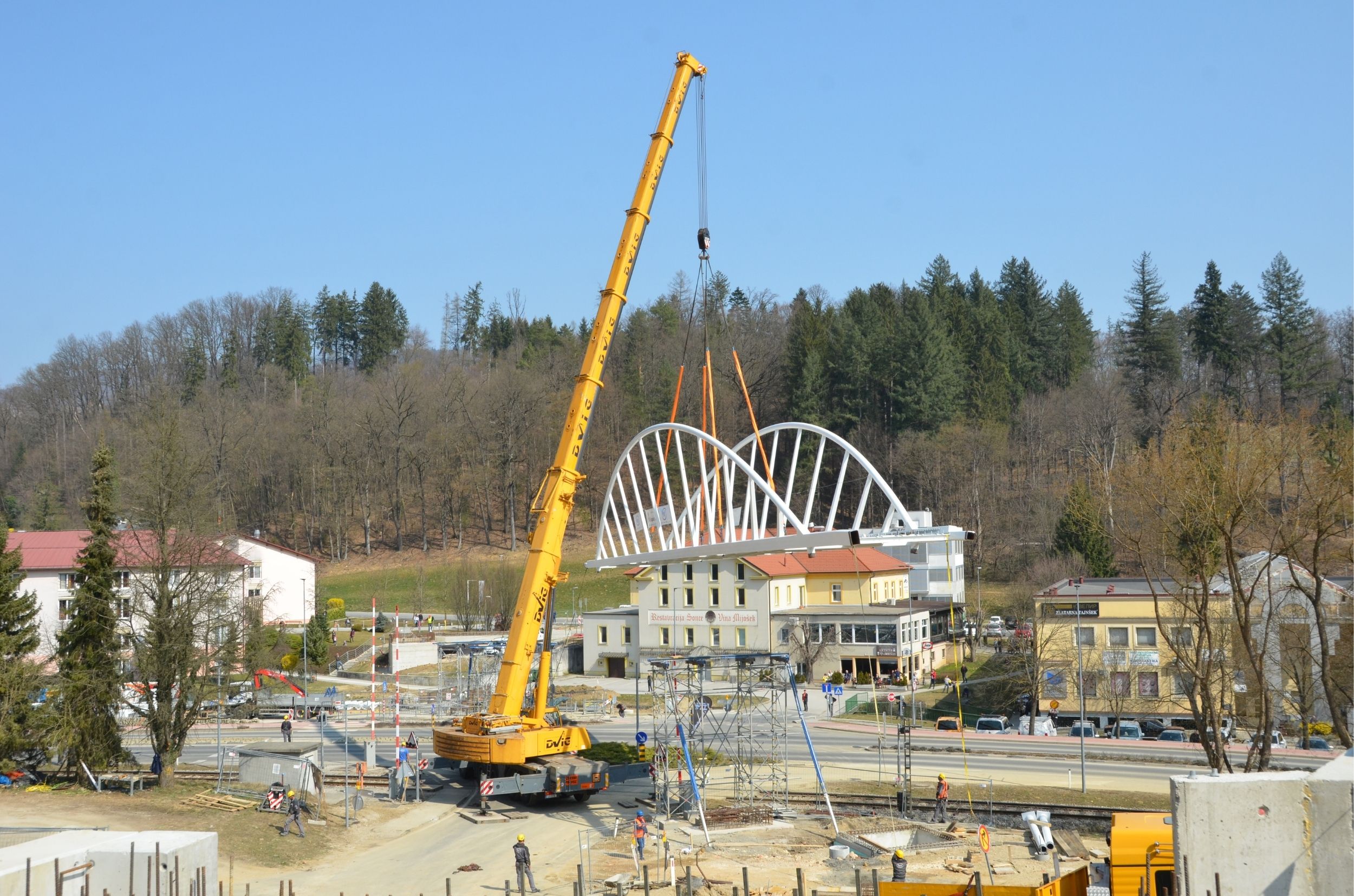

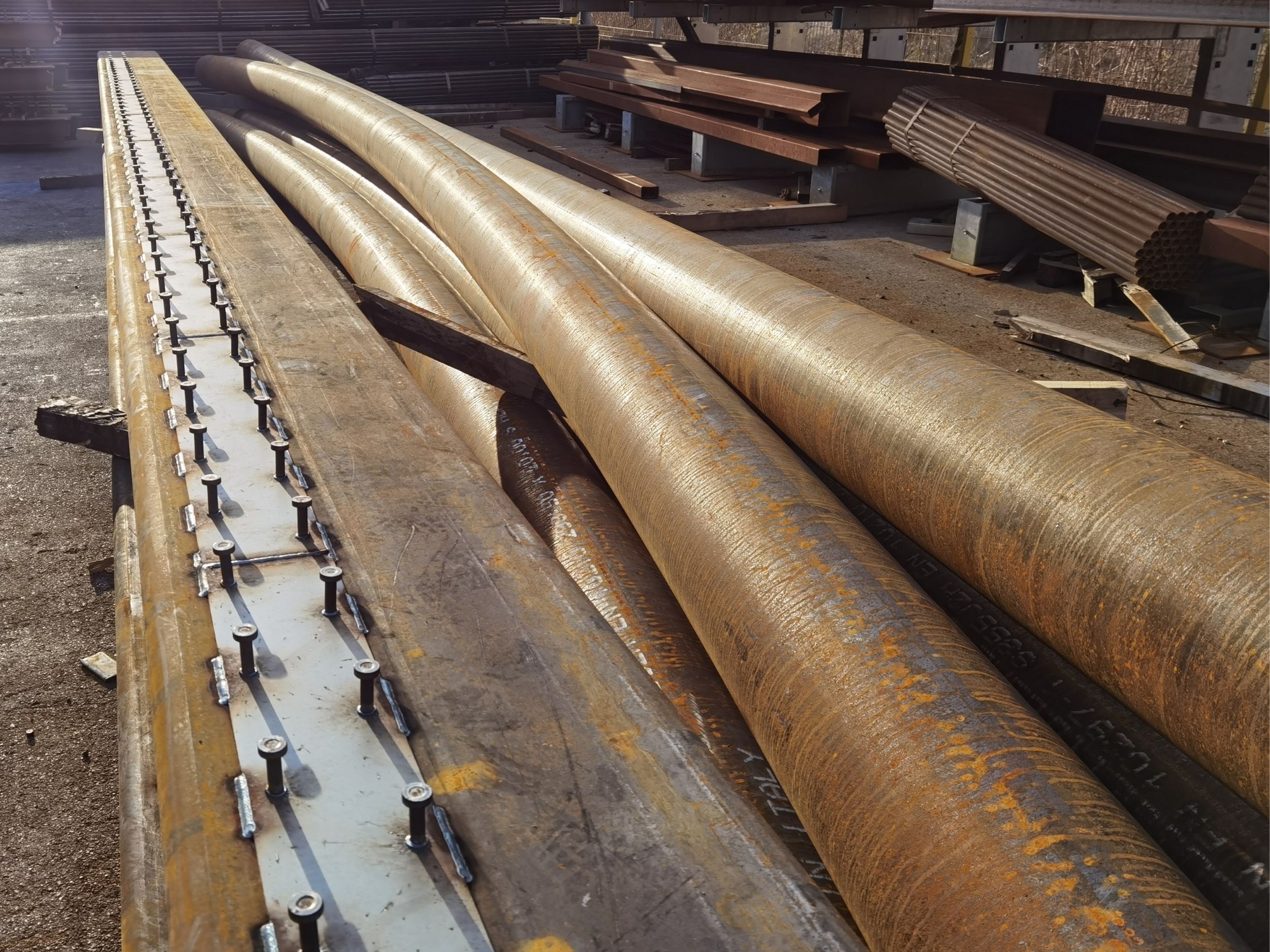

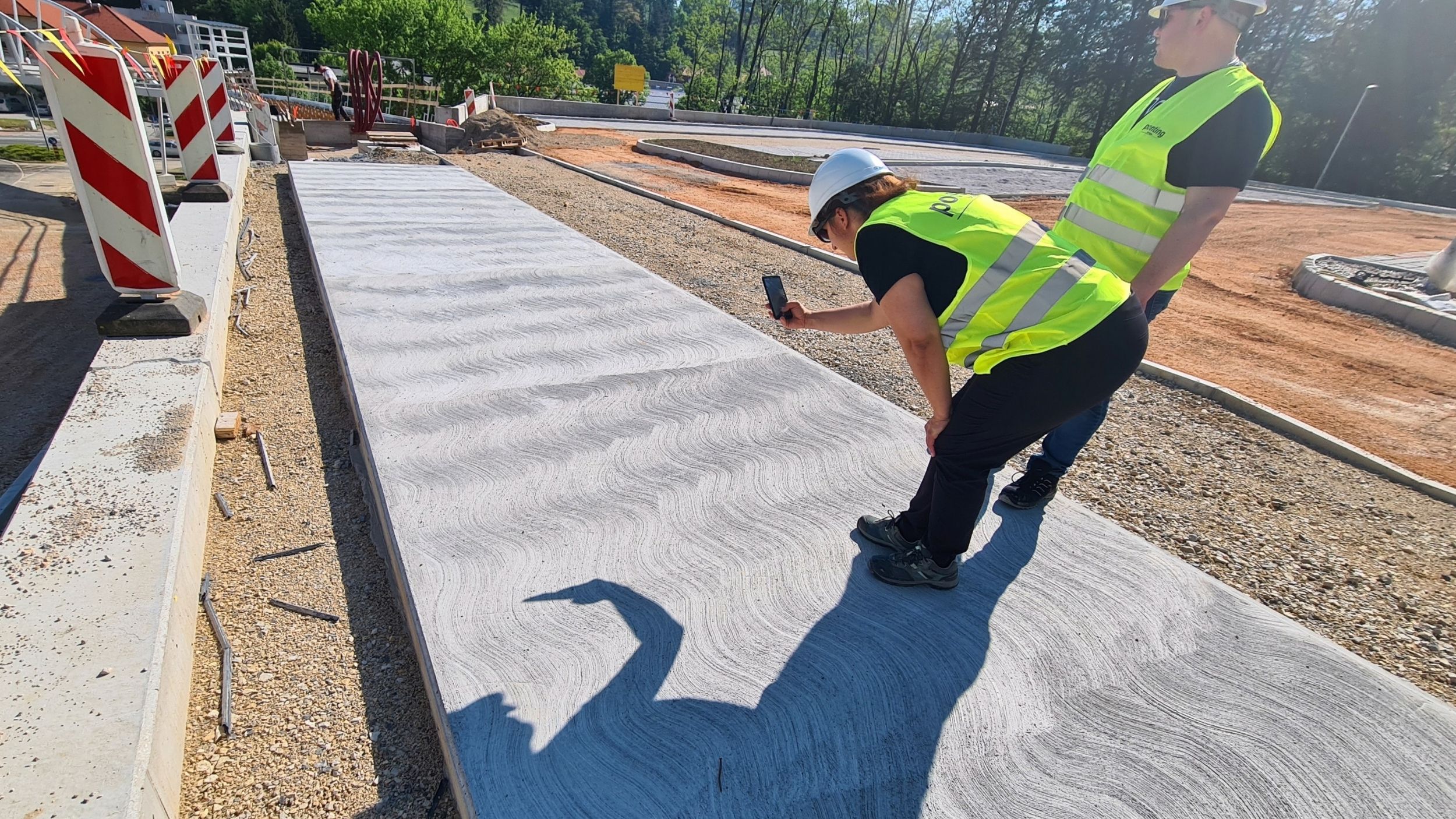

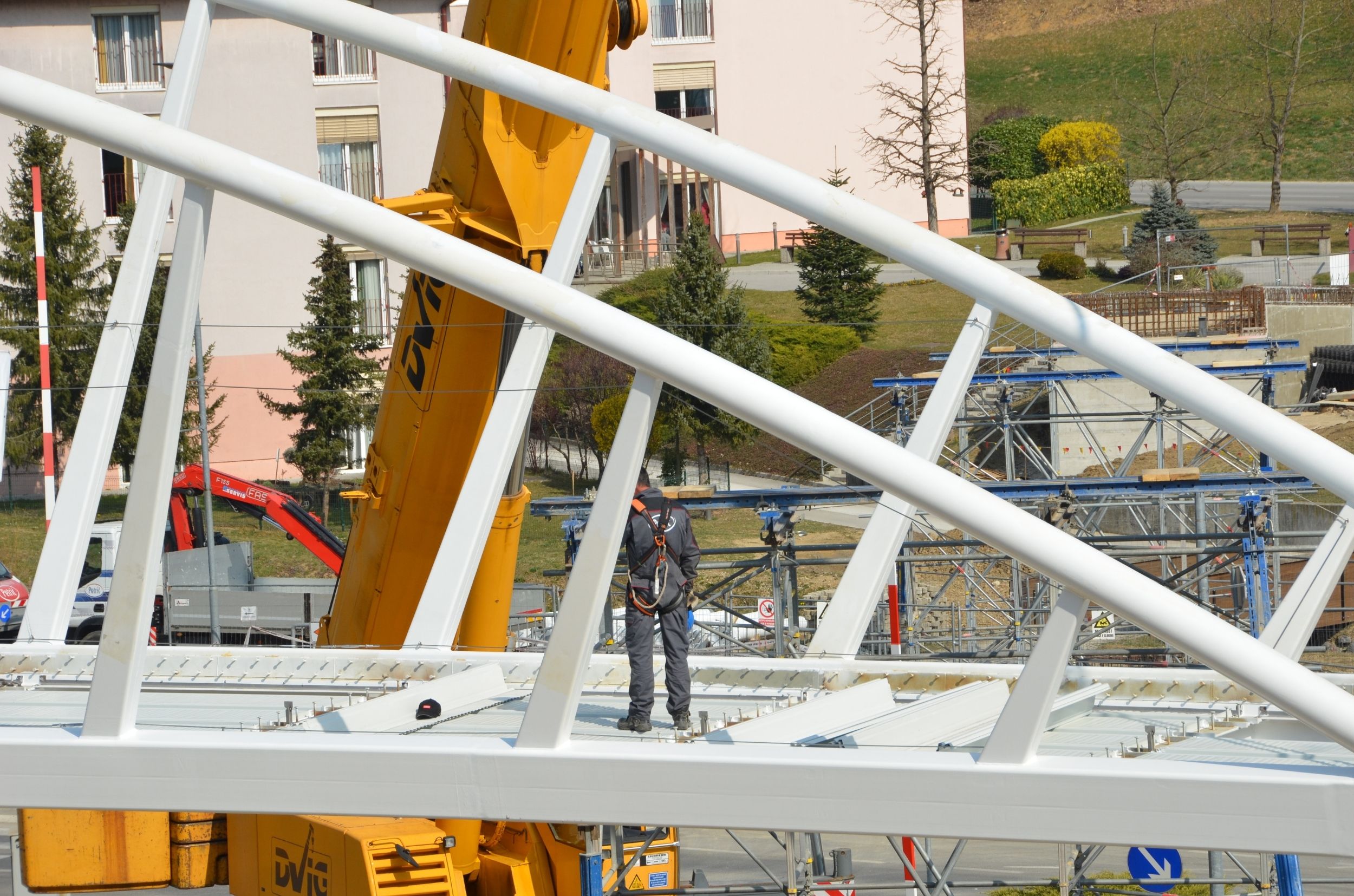

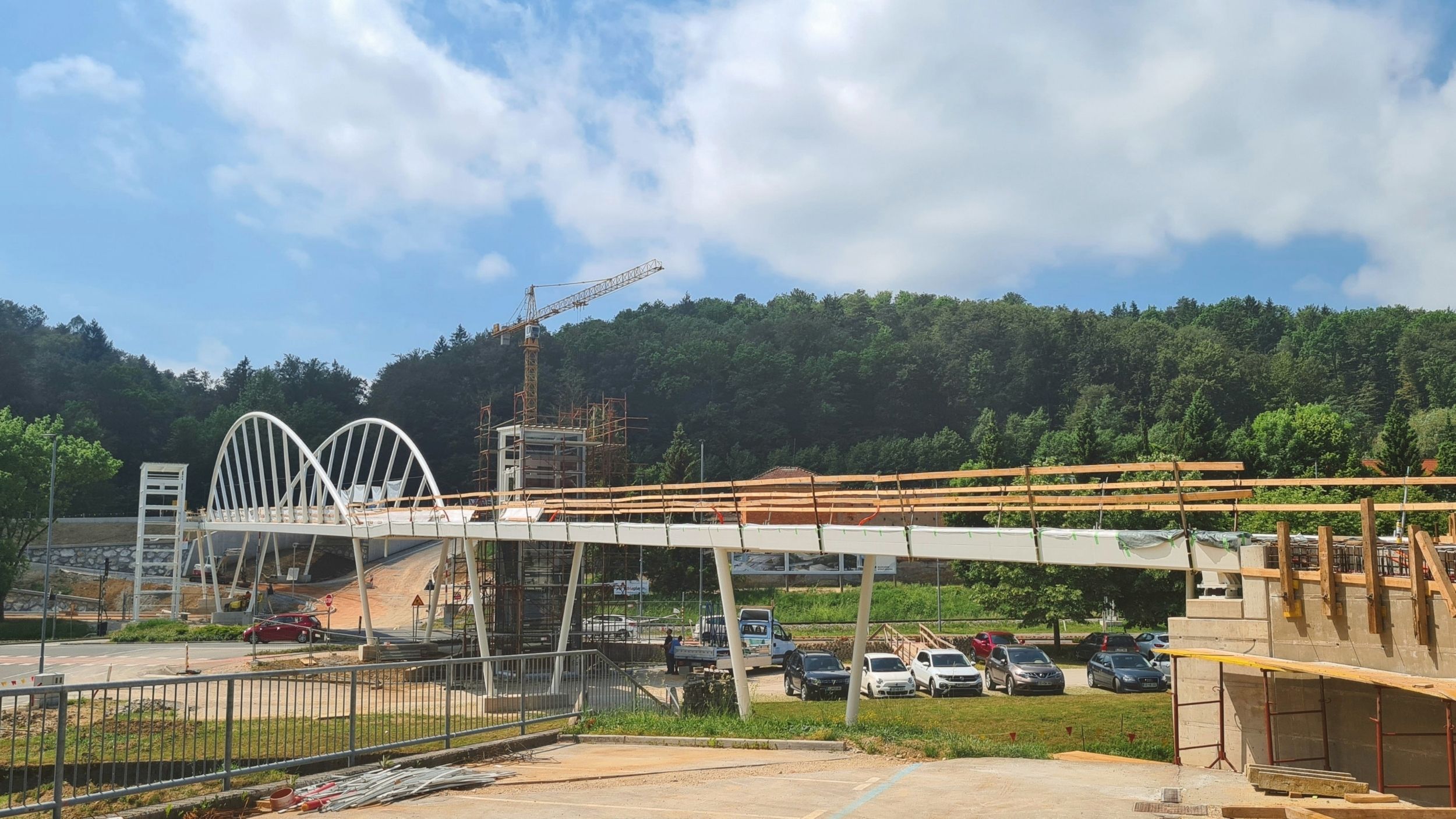

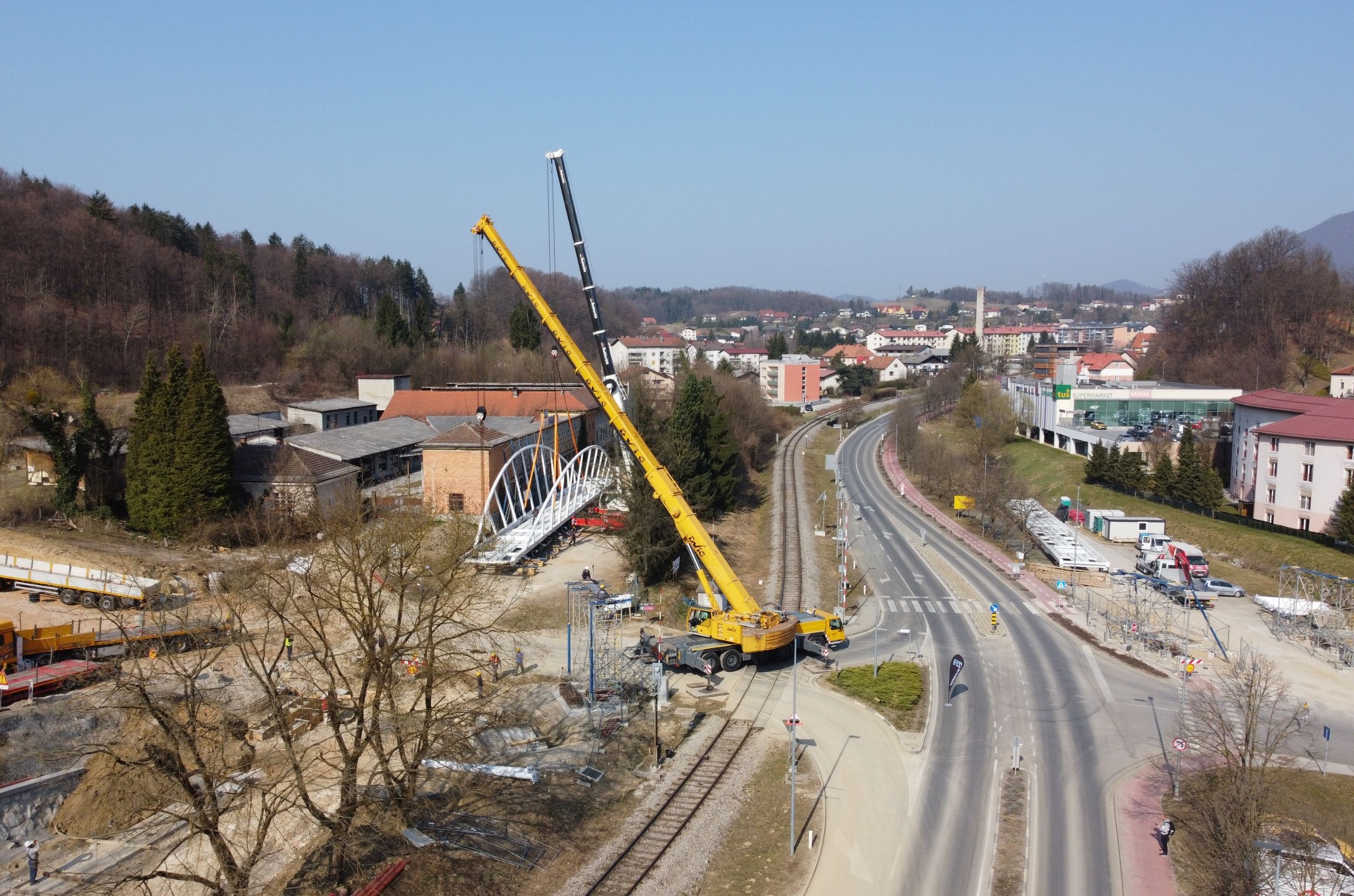

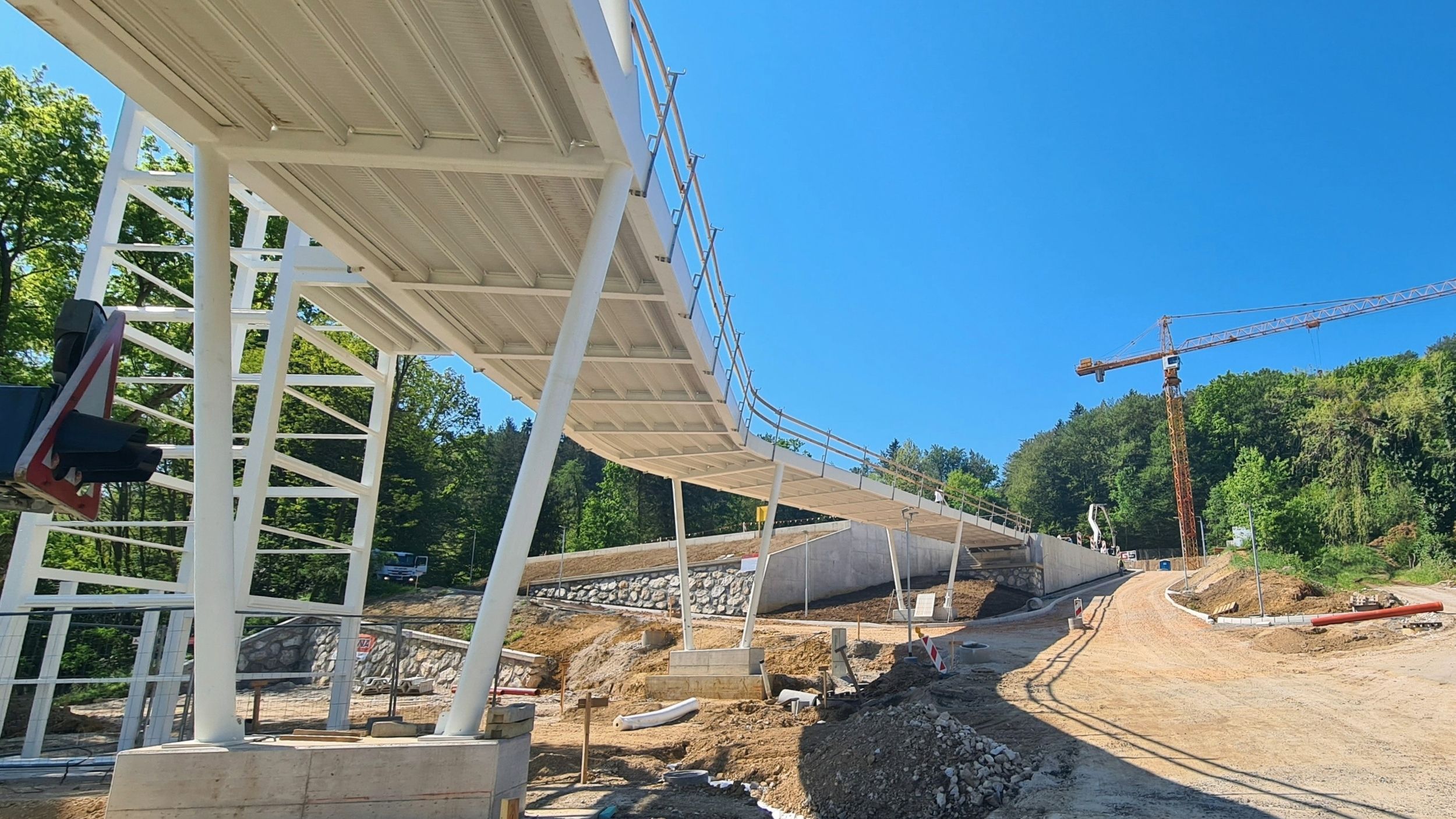

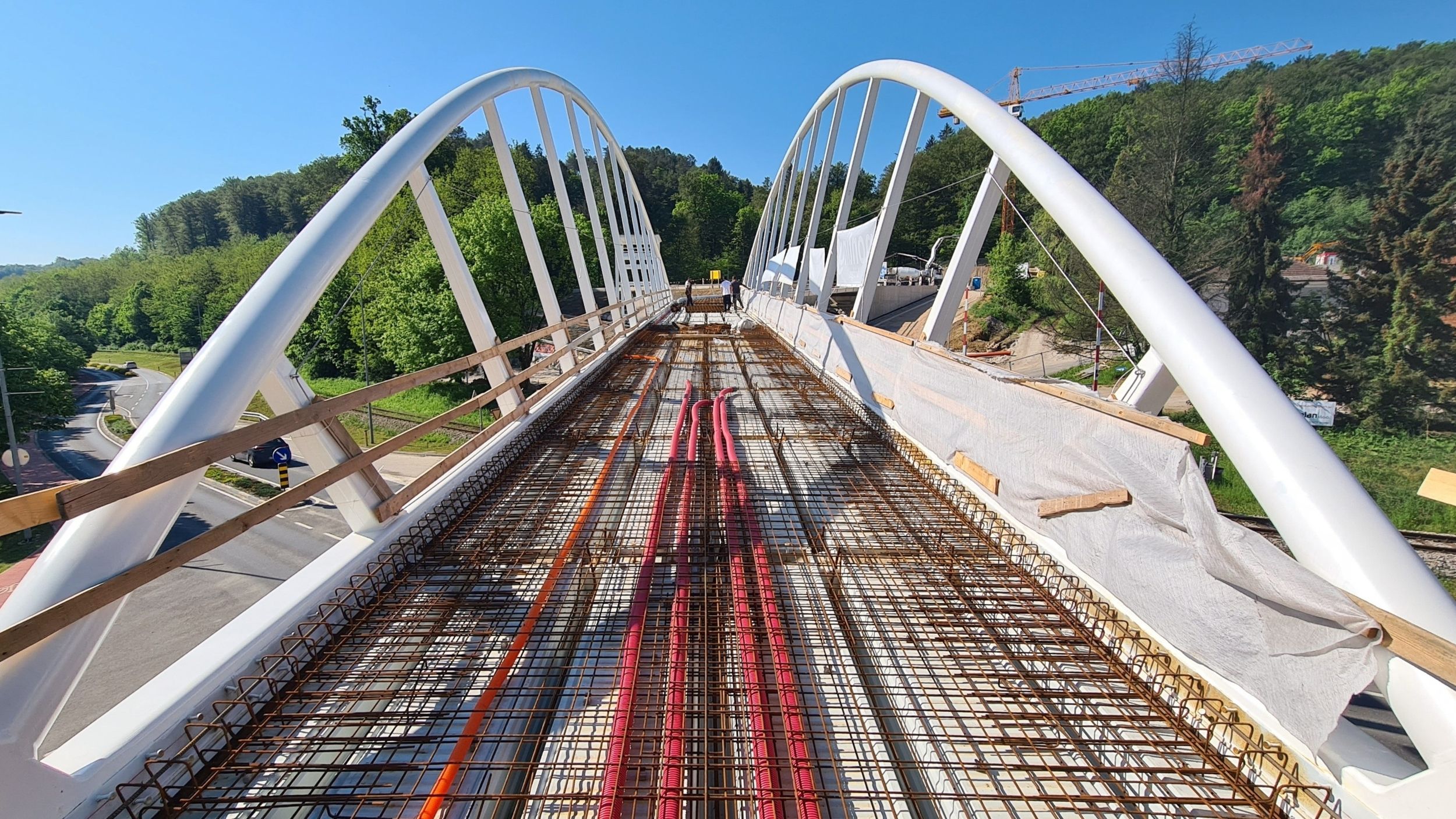

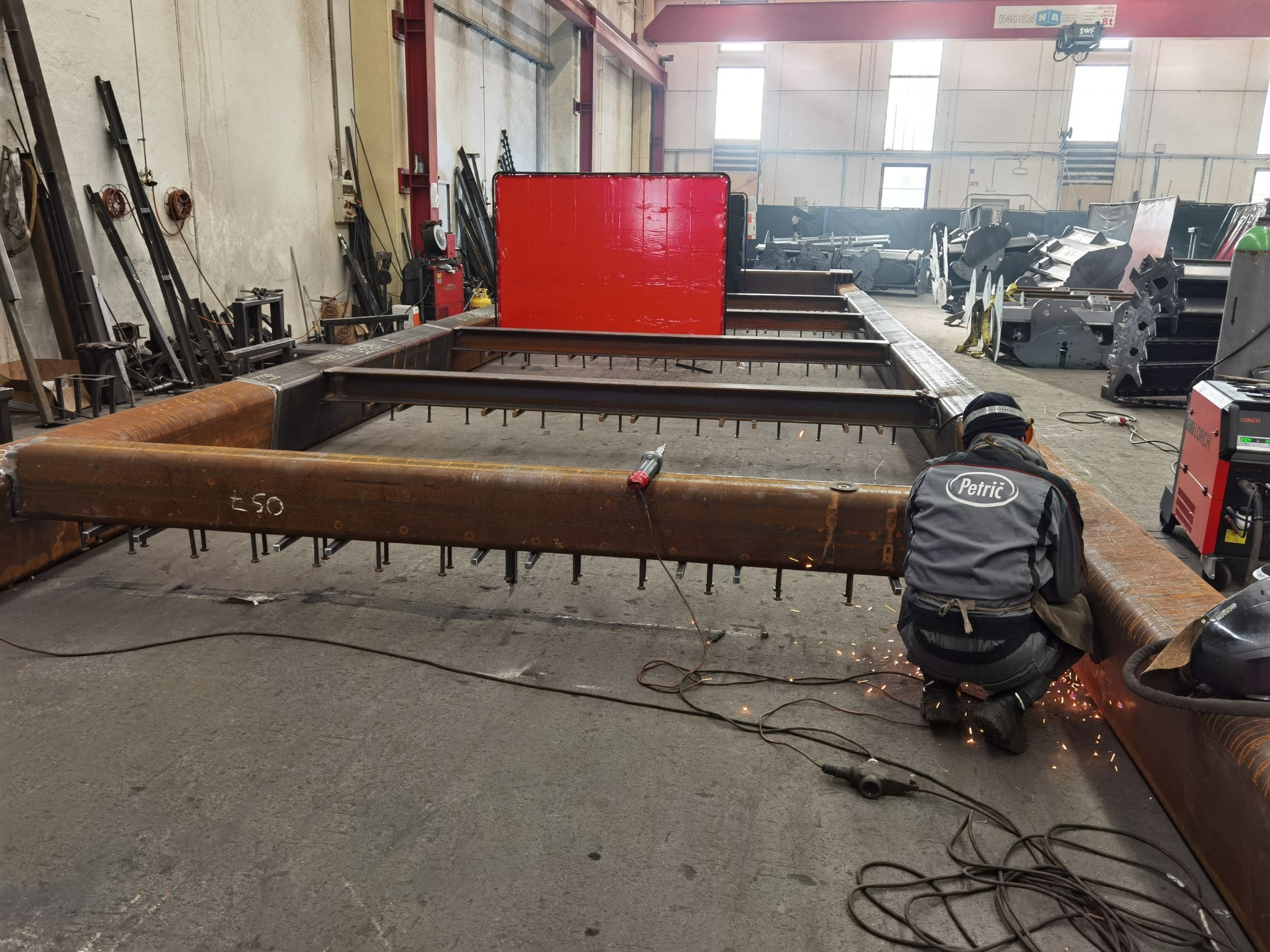

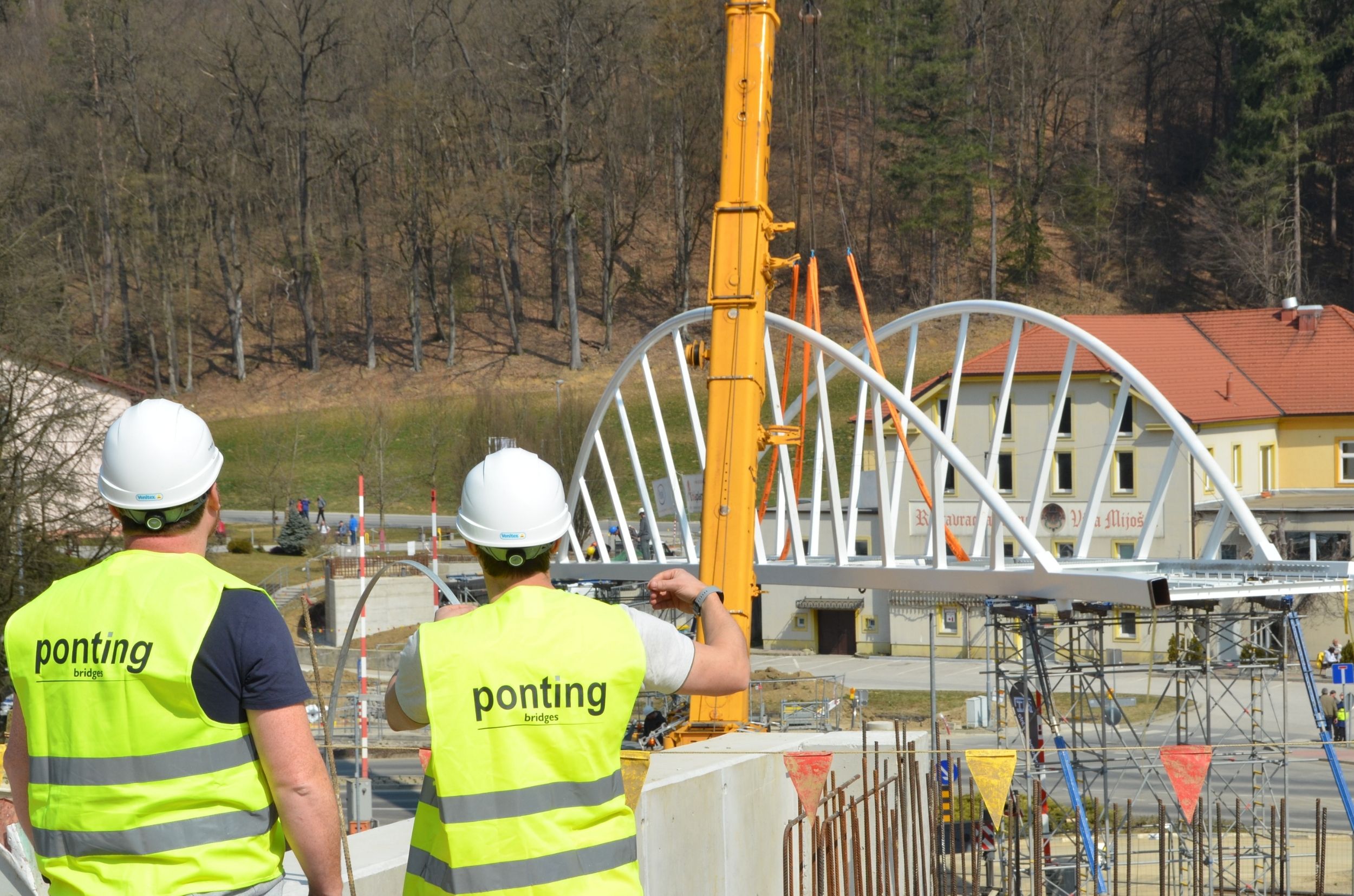

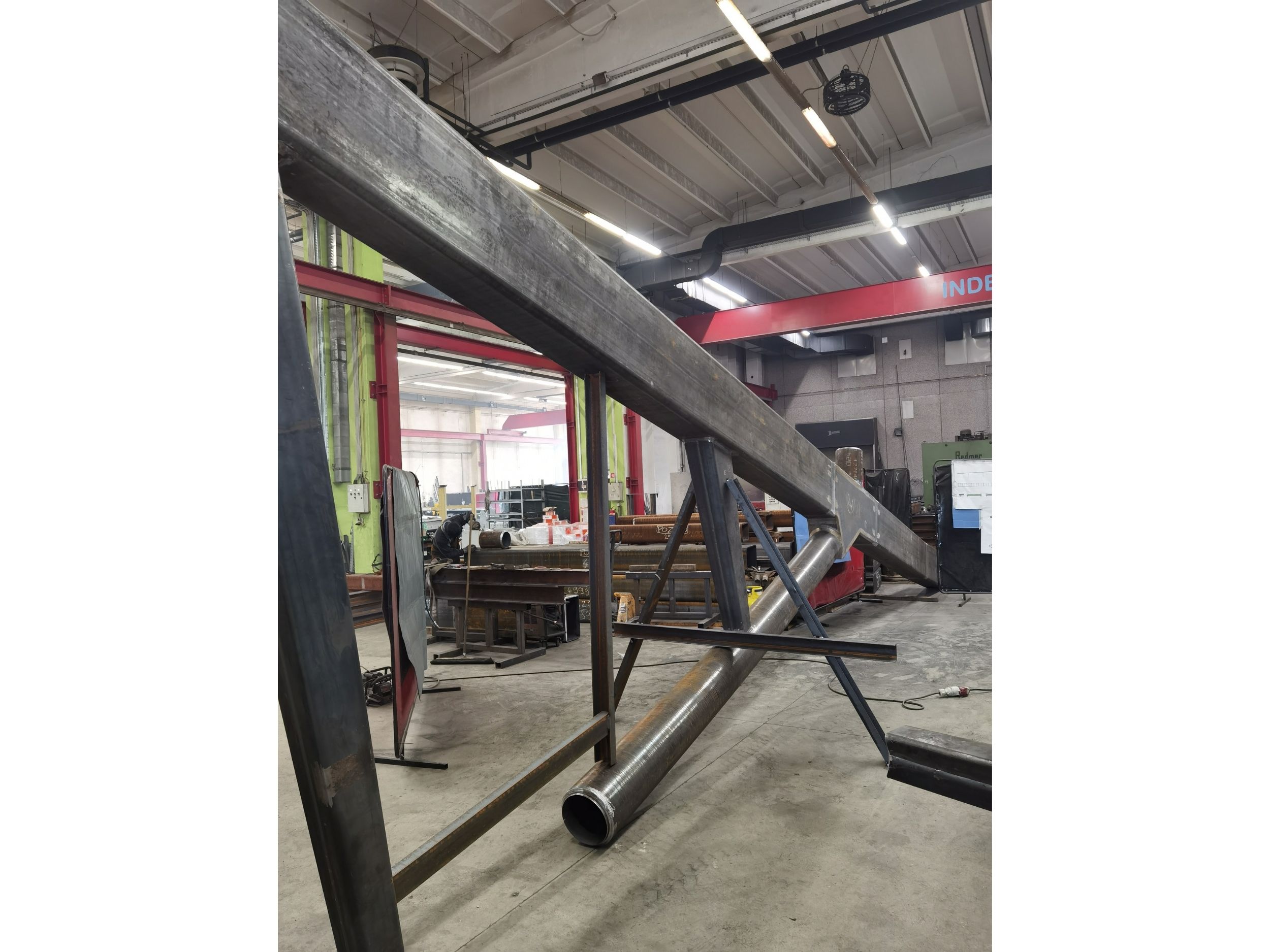

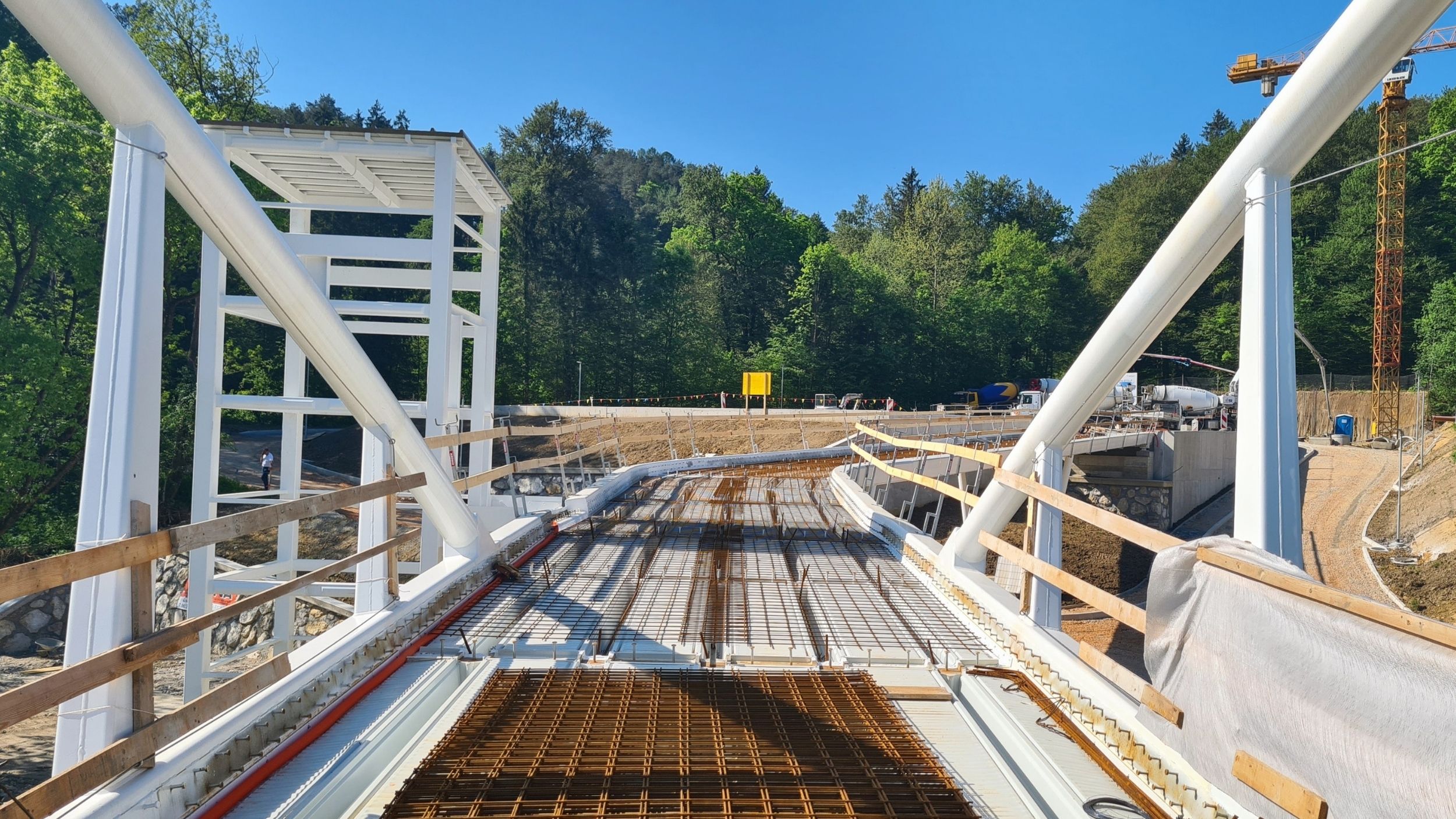

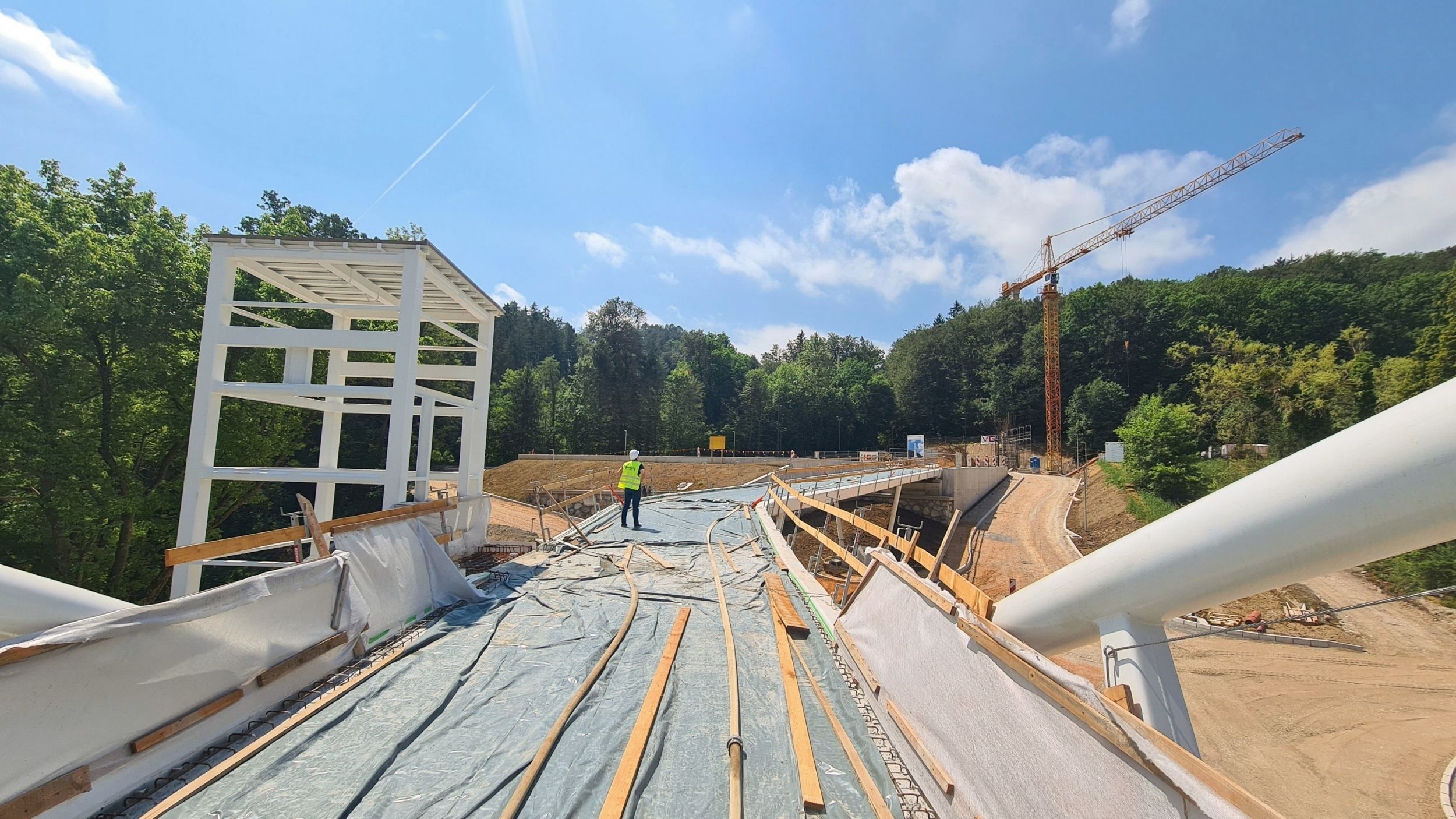

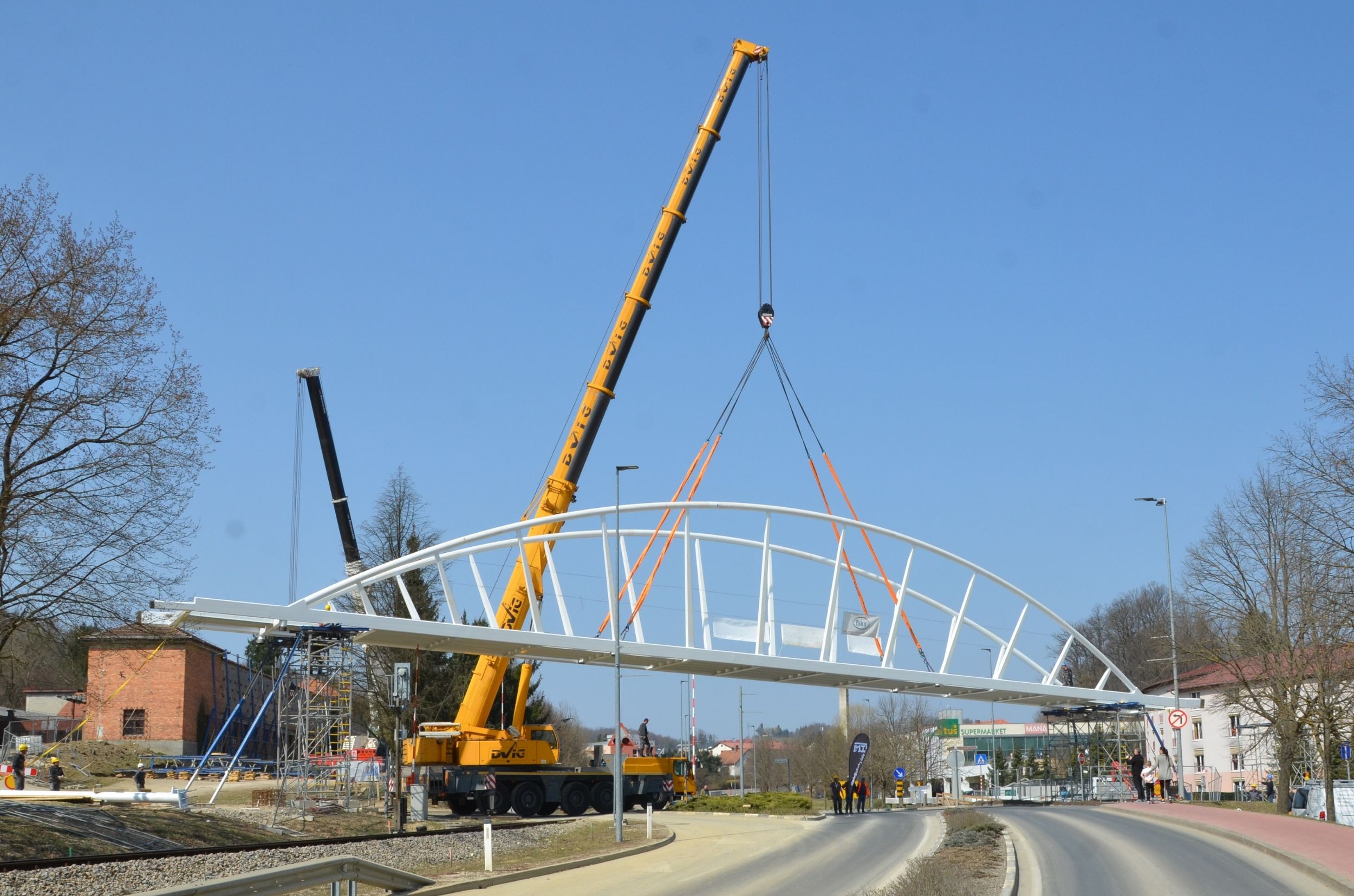

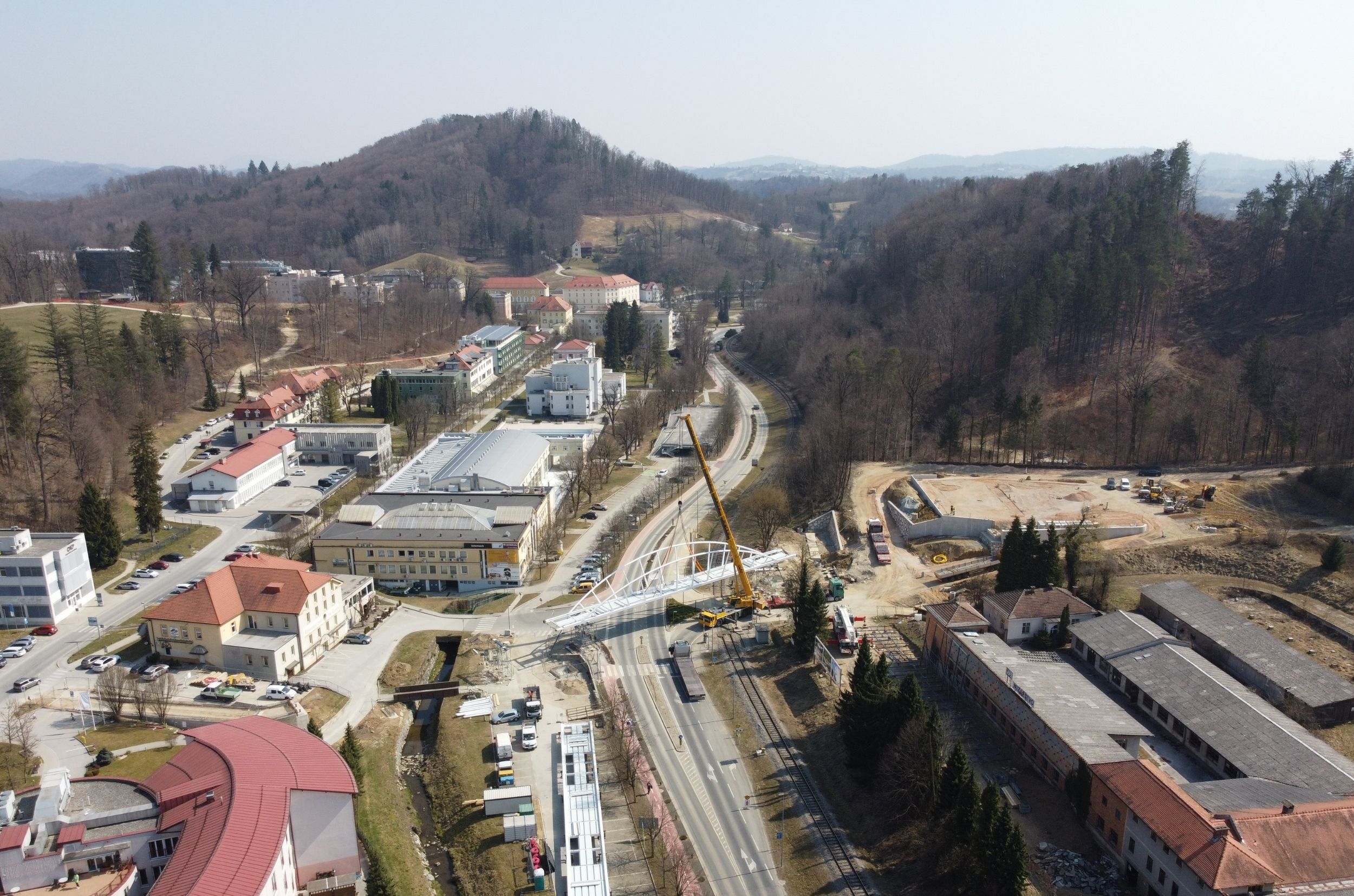

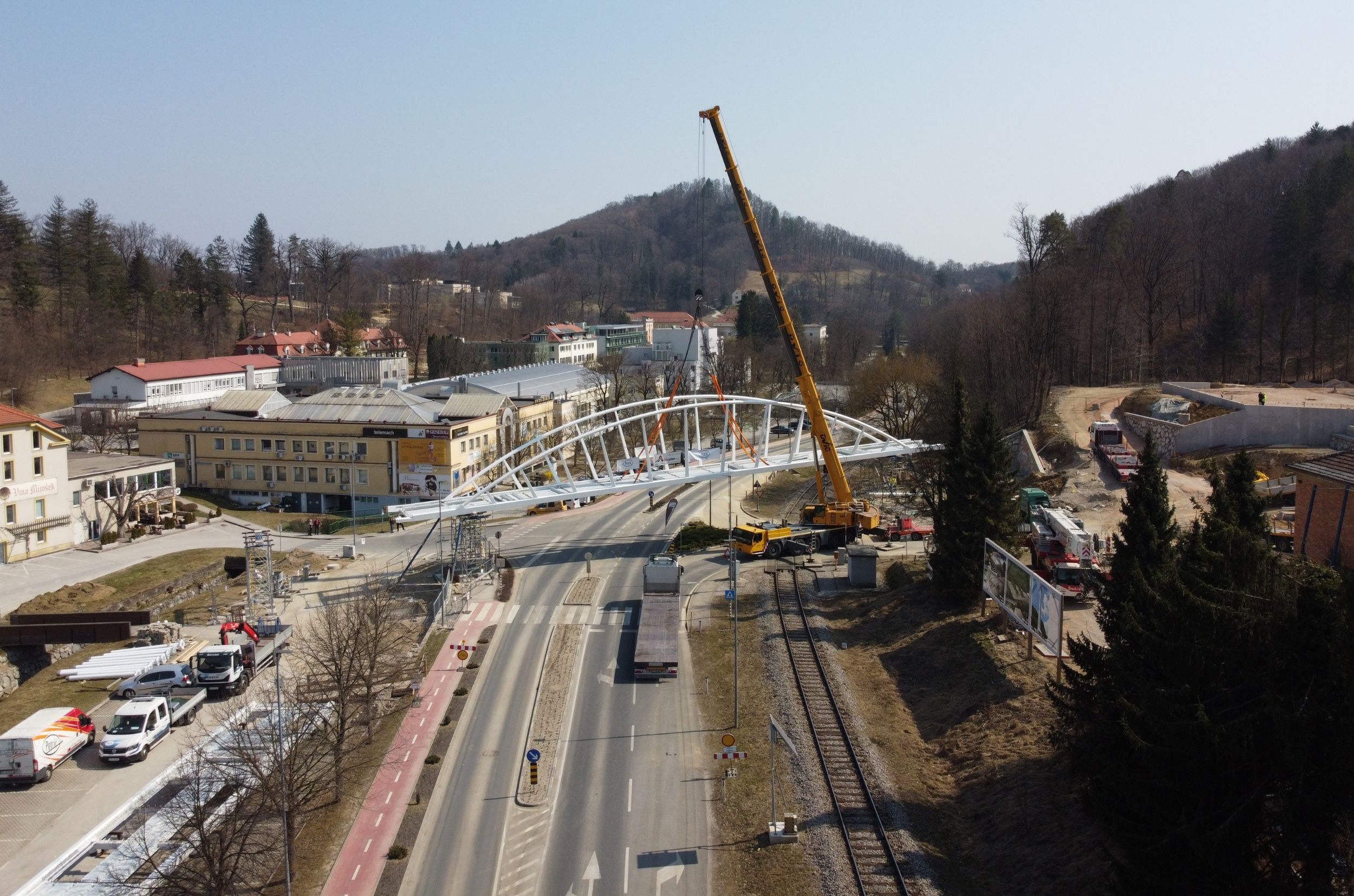

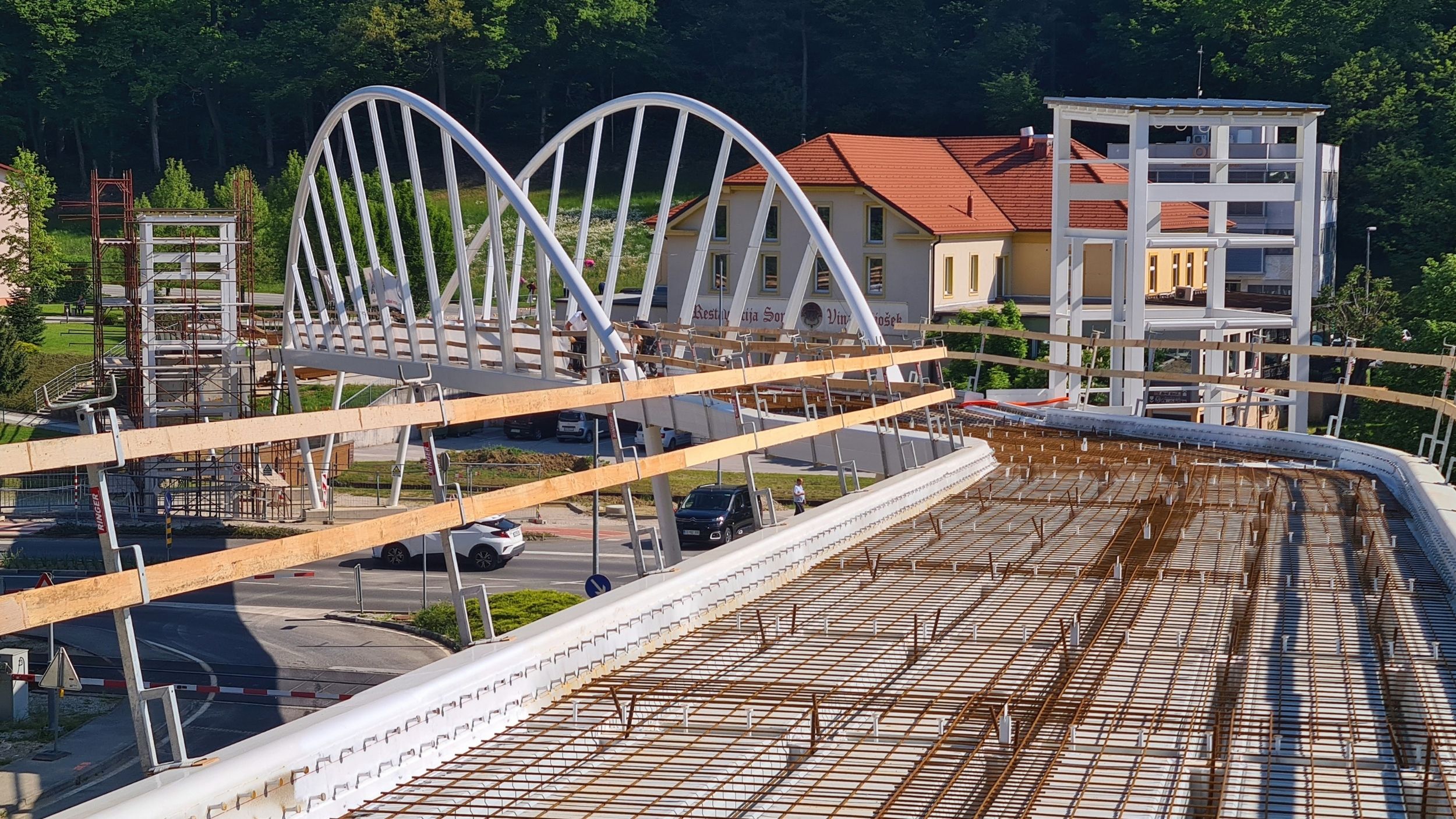

Preasembled steel structure, cast in situ concrete, Hi-Bond deck structure
Client
Municipality of Rogaška Slatina
Contractor
Adriaplan d.o.o., Petrič d.o.o. (steel structure)
Publications
MLAKAR R., MARKELJ V. - Overpass Sonce in Rogaška Slatina. October 2022, SDGK conference publication #43, 53-62.
MLAKAR R. - Overpass Sonce in Rogaška Slatina - Photo-reportage. September 2022, Gradbeni vestnik, 243-247.
